Equipment Selection | Advantages of the Weipin Series B Butt Fusion Welding Machine

Summary

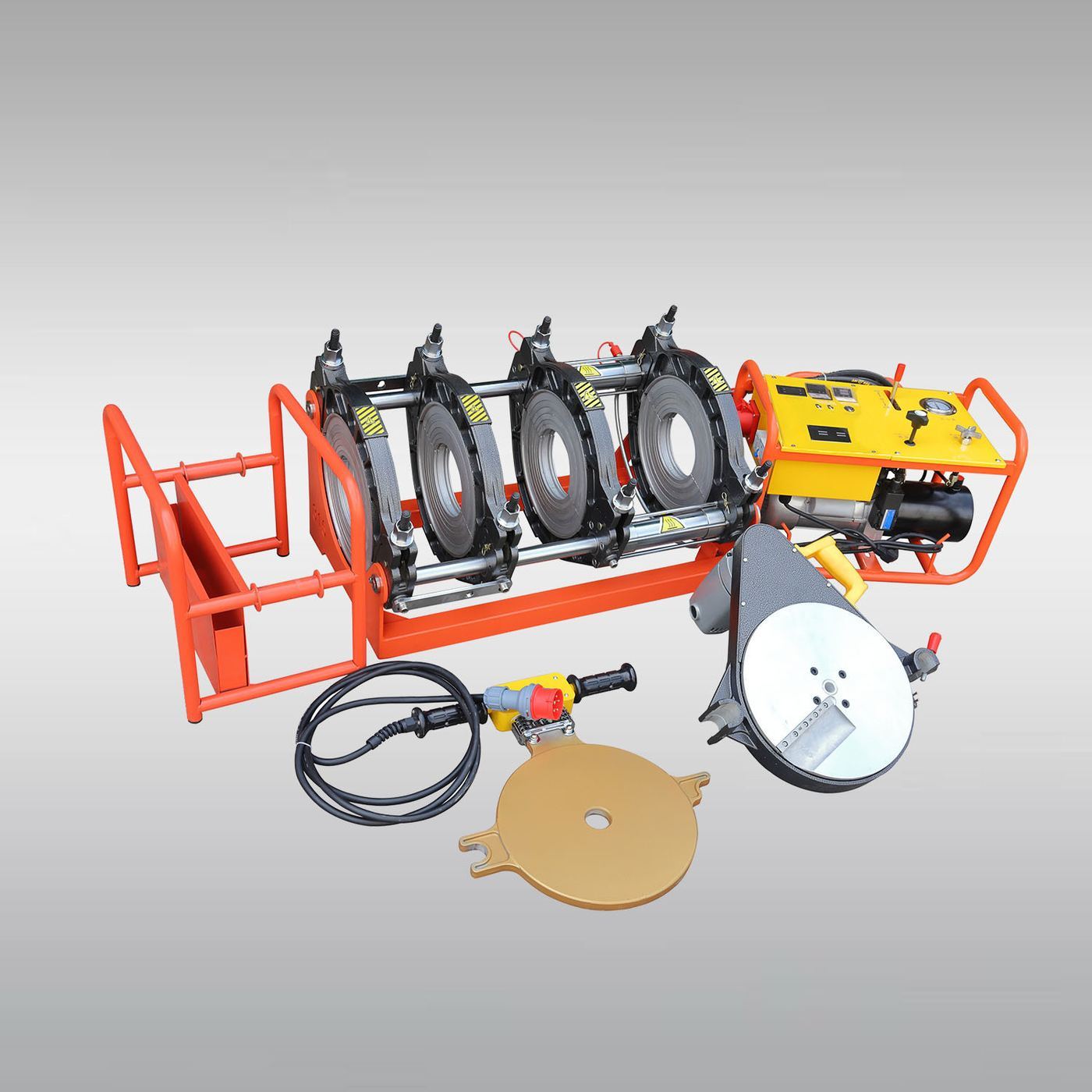

Welping B-series butt welding machines consist of the frame (including fixtures),facer, heating plate, lifting basket and tools.

Advantages of the Weipin Series B Butt Fusion Welding Machine

Welping B-series butt welding machines consist of the frame (including fixtures),facer, heating plate, lifting basket and tools.

1. The rack is used to fix the PE pipe; if the pipe is severely deformed, a round straightener is required. (It is not a dragging tool either.)

2. facer are designed for face milling and flattening, not for cutting. If cutting is required, use a cutting machine instead.

3. The heating plate is used to heat the pipe orifice before welding.

	welping	other

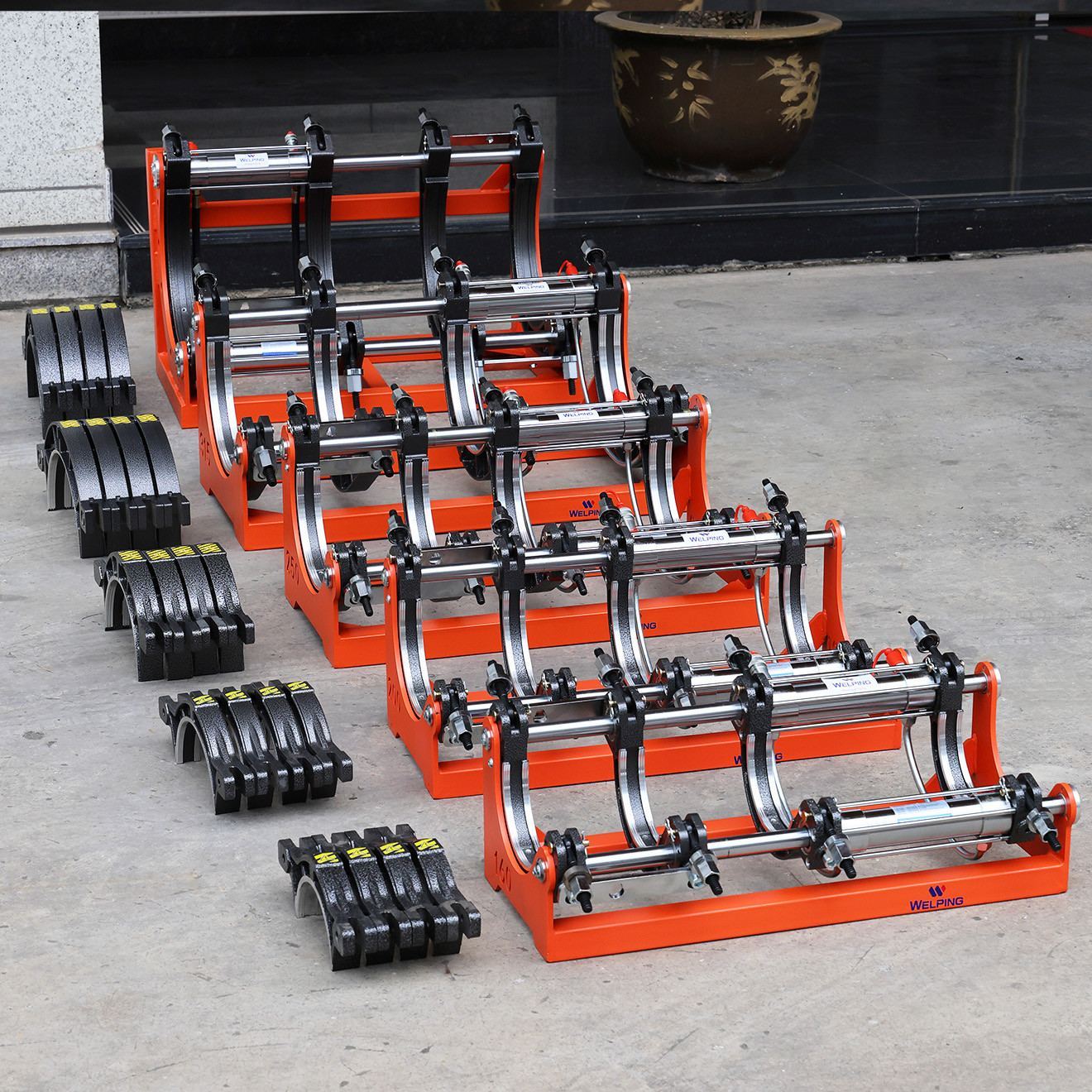

Rack	Integrated welding frame: ① Add a triangular mechanical structure ② Smaller concentric circle error ③ Strong deformation resistance and pressure-bearing capacity	Modular Rack: ① Tighten and fix the screws ② Large concentric circle error ③ Prone to deformation and poor compression resistance
Upper and Lower Rings	Aluminum Die Casting: ① Dense internal structure, with excellent tensile and compressive resistance ② The tile clamp can be optionally equipped up to DN40	Foundry returns: ① The internal structure has numerous pores and poor tensile properties. ② Clamp tiles can be optionally fitted up to DN63
Quick coupling	Steel Grade: ① Repeated assembly and disassembly without damaging the pipeline ② Self-locking and anti-slip, safe and reliable	Normal: ① Low plug/unplug cycles and prone to deformation ② May come loose and cause oil leakage

	welping	other
Transmission structure	Gear Drive: ① The cutter head is driven by the large and small gears ② Integrated Die-cast Bearing ③ Finishing cutter head	Chain Assembly: ① The cutter head is driven by a chain ② Numerous nodes and prone to damage ③ Irregular adjustments are required during use ④ General grinding of the cutter head
Electric motor	Ultra-high power: ① All-copper motor ② High torque	High Power: ① All-copper motor, with moderate power ② Low torque
Fixing Method	Anti-bounce snap: ① Prevents the milling cutter from popping up automatically during the milling process, making it safe and practical to use	Partial pins: ① Prone to falling off and getting lost ② Inconvenient to use

	welping	other
plug	Aviation Connector: ① No overheating, no ignition ② Supports thousands of plug cycles for long-lasting durability ③ Extremely low failure rate	Standard plug: ① It can ignite and generate heat. ② Frequent plugging and unplugging easily leads to deformation ③ Prone to burnout after overheating ④ Risk of electric leakage
Temperature Display	Digital Display: ① Temperature Visualization	Scale display: ① According to the scale, the error is large
Surface Coating	Double-layer gold lacquer: ① High carbonation resistance	Black Lacquer: ① Easily adsorbs molten PE
