FX500 Butt Fusion Welding Machine
- Share
- publisher
- RUBR
- Issue Time
- Feb 2,2026
Summary
The FX500 butt fusion welding machine is a mid-range model in the FX series by FusingX, designed for everyday HDPE pipe welding around the commonly used 500 mm size. With a stable clamping frame, mobile hydraulic unit, and standard facer and heating plate, it offers a balanced and practical setup for routine on-site pipeline construction work.
The FX500 butt fusion welding machine is a commonly used mid-range model within the FX series, developed for routine HDPE pipe welding tasks.
Pipes around 500 mm are widely used in water supply and general pipeline projects, and the FX500 is configured specifically around this practical working range.
Familiar Structure with a Clean Layout
From an overall perspective, the FX500 follows a familiar and proven configuration.
The clamping frame, hydraulic power unit, facer, and heating plate are all independent units that operators are already familiar with.
Once set up on site, the overall layout appears balanced and orderly. Each component has clear space, and the working area does not feel crowded.
Clamping Frame Focused on Stability
The clamping frame adopts a straightforward structure with evenly distributed clamps.
During pipe loading and alignment, pipe positioning is easy to control and usually does not require repeated adjustment.
This is not a new design approach, but it remains reliable and effective in daily welding work.
Mobile Hydraulic Power Unit

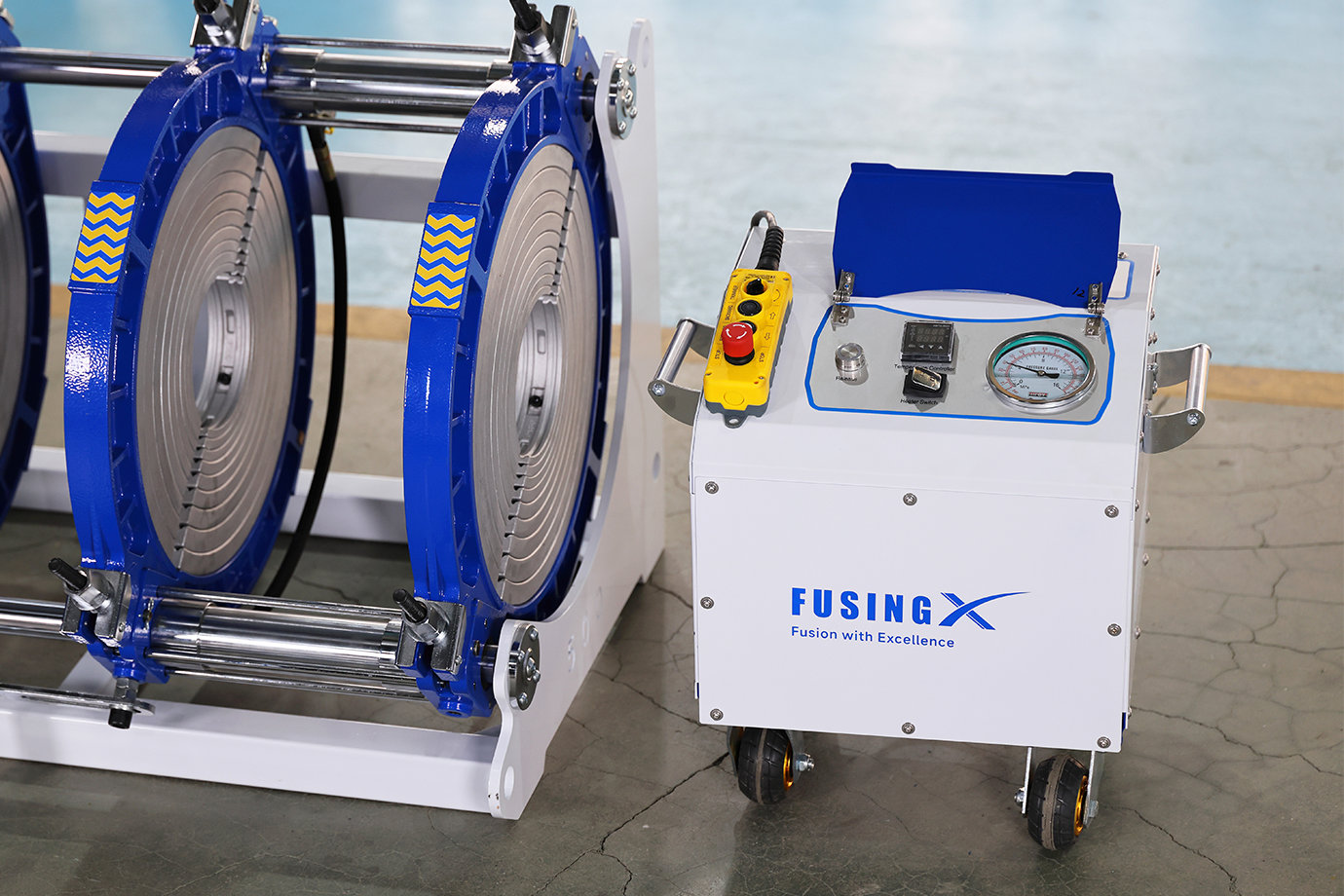

The hydraulic power unit is configured as a separate wheeled unit, making it convenient to move around the job site.
The control panel layout is simple, with the pressure gauge and main controls clearly arranged, allowing operators to work more intuitively.
Standard Facer and Heating Plate

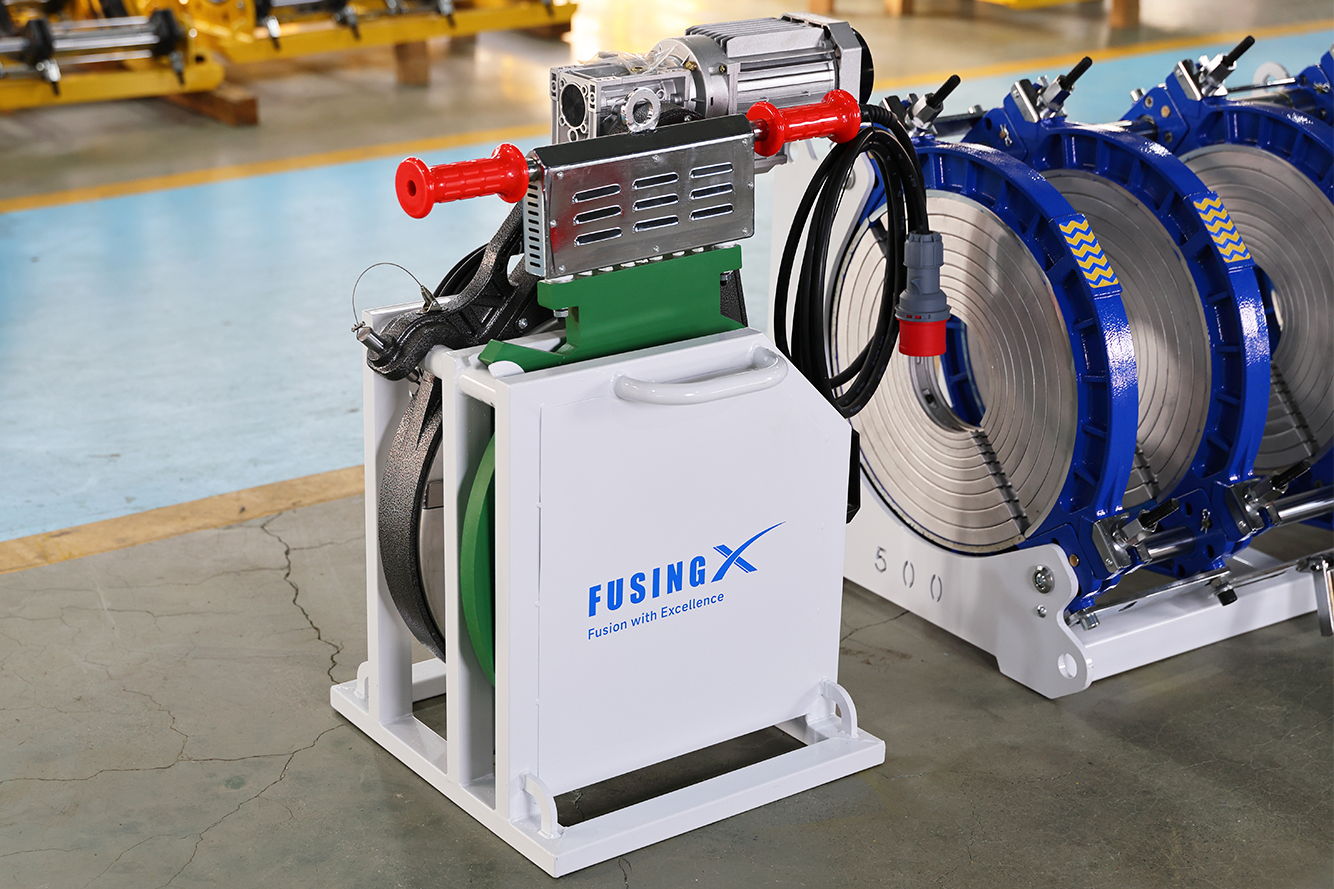

The FX500 is equipped with an independent facer and heating plate.
· The facer prepares clean and even pipe ends before welding.
· The heating plate provides stable and consistent heating for proper pipe fusion.
Both units are simple in structure and easy to handle during everyday operation.
In Short
The FusingX FX500 butt fusion welding machine is not designed to emphasize special features.
It is a practical and well-balanced machine, built around a commonly used pipe size and intended for everyday on-site welding work.

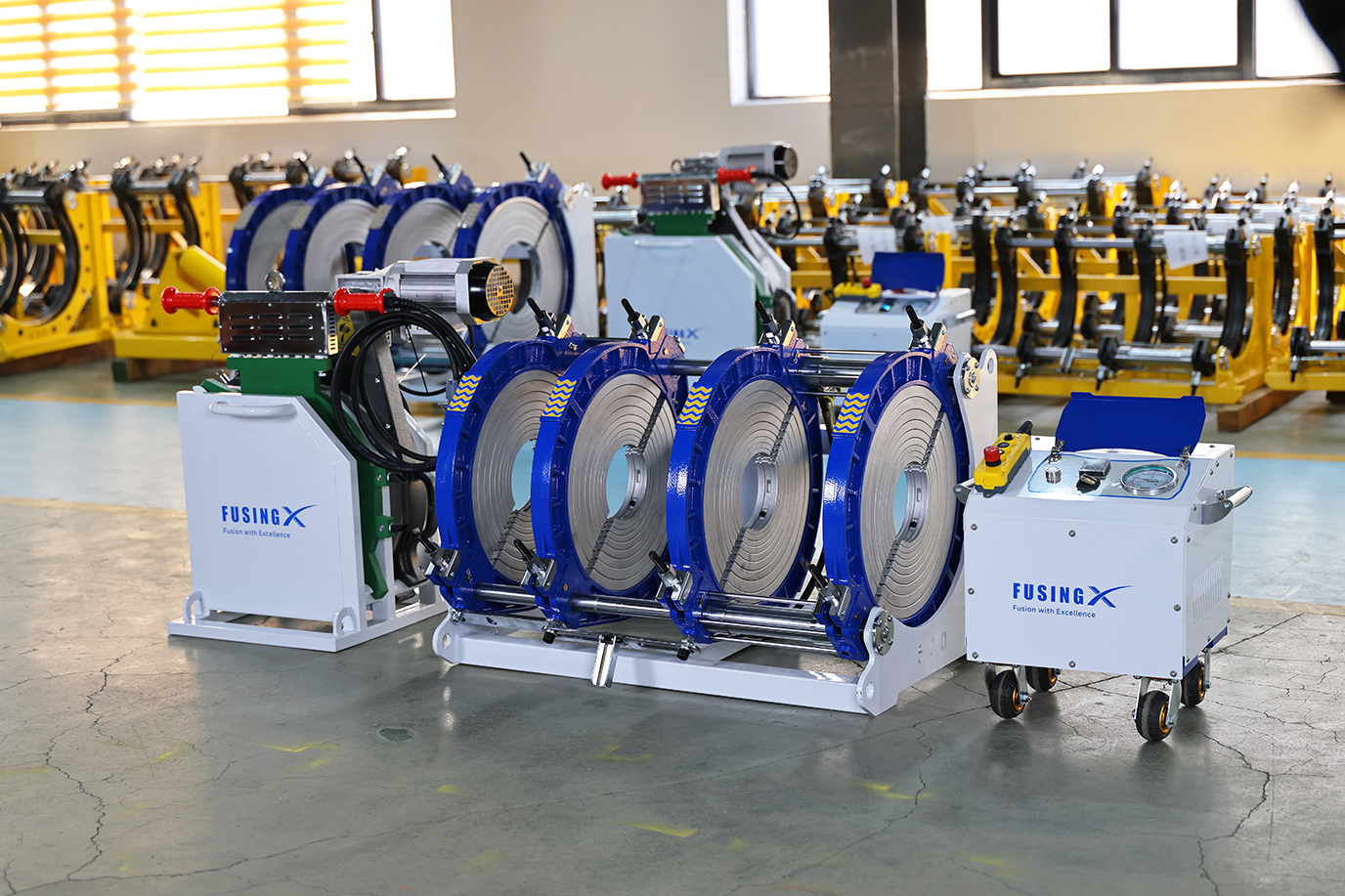

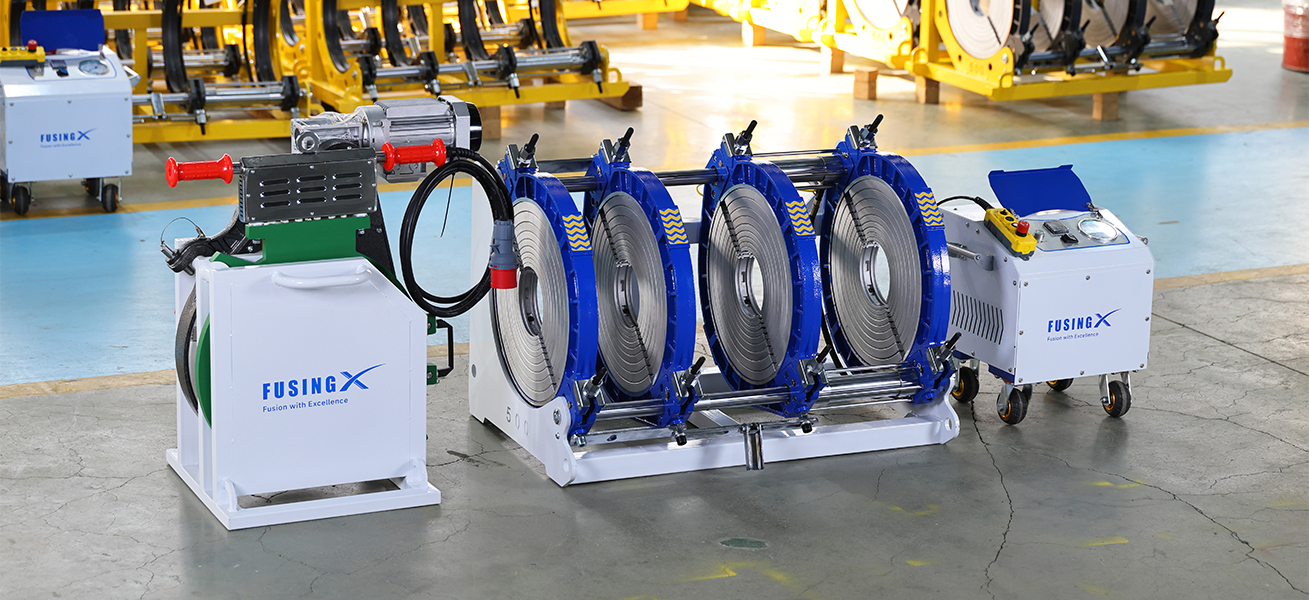

The factory photos show the FX500 in its standard working configuration.
For more information about the FX series butt fusion machines, you are welcome to visit our FusingX website to explore available models and configurations.
