FX series large-diameter butt fusion machines use an anti-slip pad system to improve pipe stability during welding. By increasing contact area and enabling adjustable positioning, the pads help reduce slippage and adapt to non-standard pipes. With multi-point contact (e.g., 96 pads on FX1000), the system ensures more even load distribution, supporting stable and consistent performance in real jobsite conditions.
In large-diameter PE pipe butt fusion welding, maintaining pipe stability is always a practical challenge.
As pipe size and weight increase, even small movements during alignment, facing, or pressure holding can affect the overall welding process—especially under real jobsite conditions.
To address this, large-diameter models in the FX series are equipped with an anti-slip pad system designed to improve clamping stability throughout the operation.
A Practical Approach to Reducing Slippage

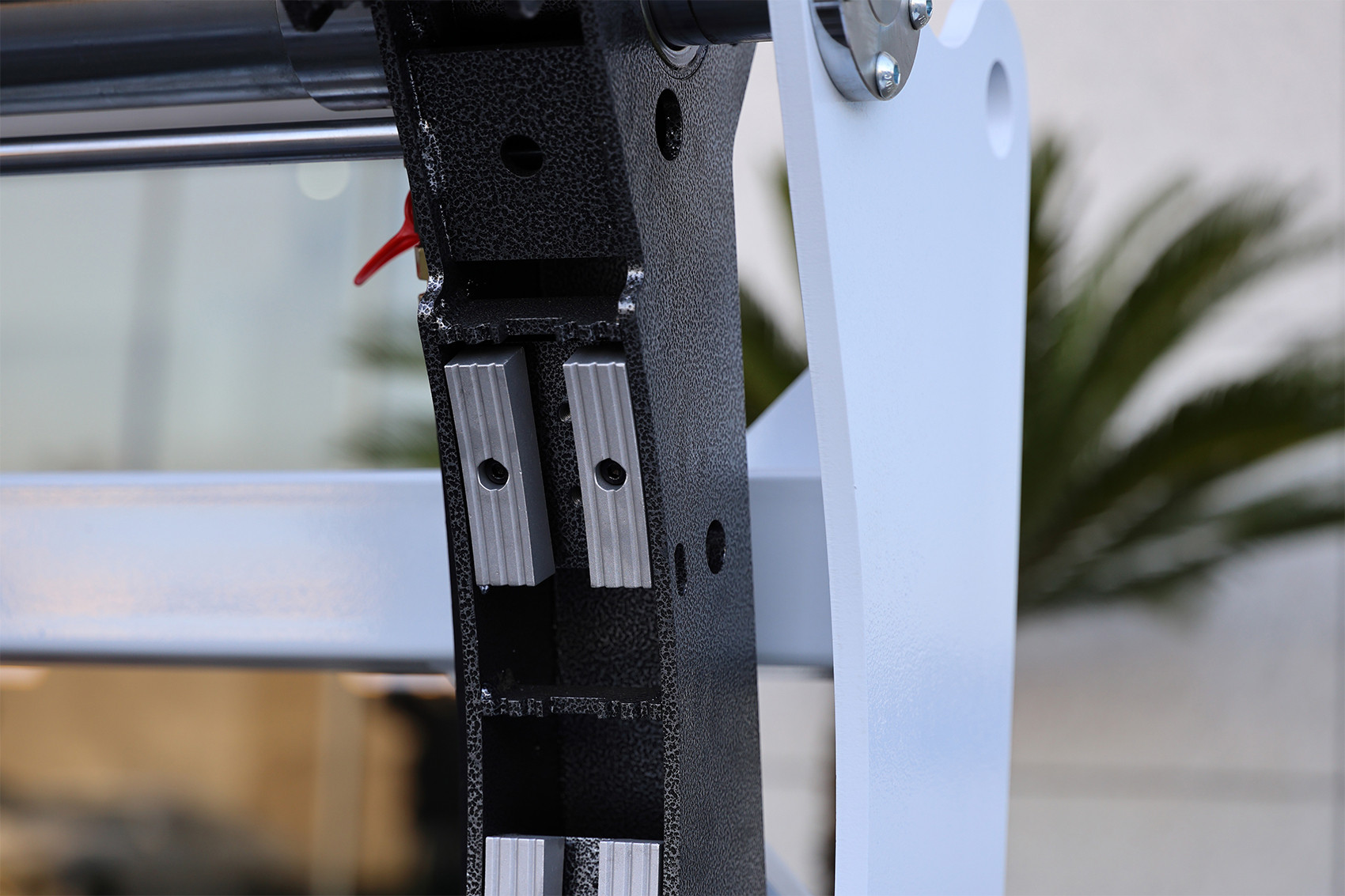

The anti-slip pads work by increasing the friction between the clamp blocks and the pipe surface.
With a larger effective contact area, the pipe is less likely to shift during movement or pressure holding.
This is not a change to the welding procedure itself, but a structural enhancement that helps maintain stability under standard operating conditions.
Adapting to Real-World Pipe Conditions
In actual projects, pipes are not always perfectly round or within ideal tolerances.
Slight ovality or dimensional variation is common.
The anti-slip pads on the FX series are designed to be adjustable, allowing operators to fine-tune their position within a certain range.
This makes it easier to match the pipe surface and improves adaptability when working with non-standard pipes.
Even Load Distribution with Multi-Point Contact
On the FX1000, for example, each machine is equipped with 96 anti-slip pads.
Rather than adding unnecessary complexity, this configuration ensures that clamping force is distributed more evenly around the pipe.
With multiple contact points, the risk of localized slipping or uneven loading is reduced—an important factor when working with large-diameter pipes.
Designed for Large-Diameter Applications
The anti-slip pad system is currently applied to large-diameter models within the FX series.

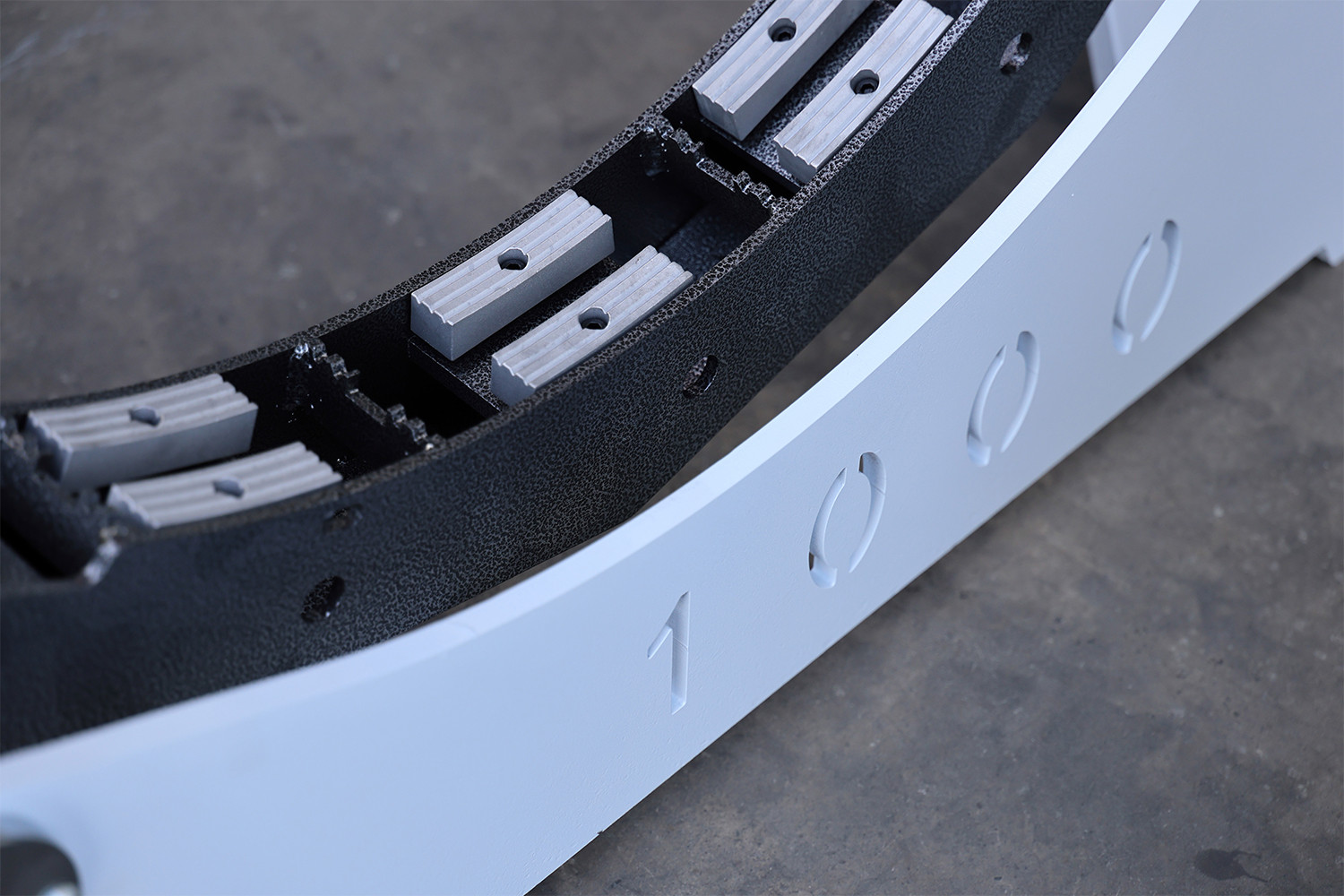

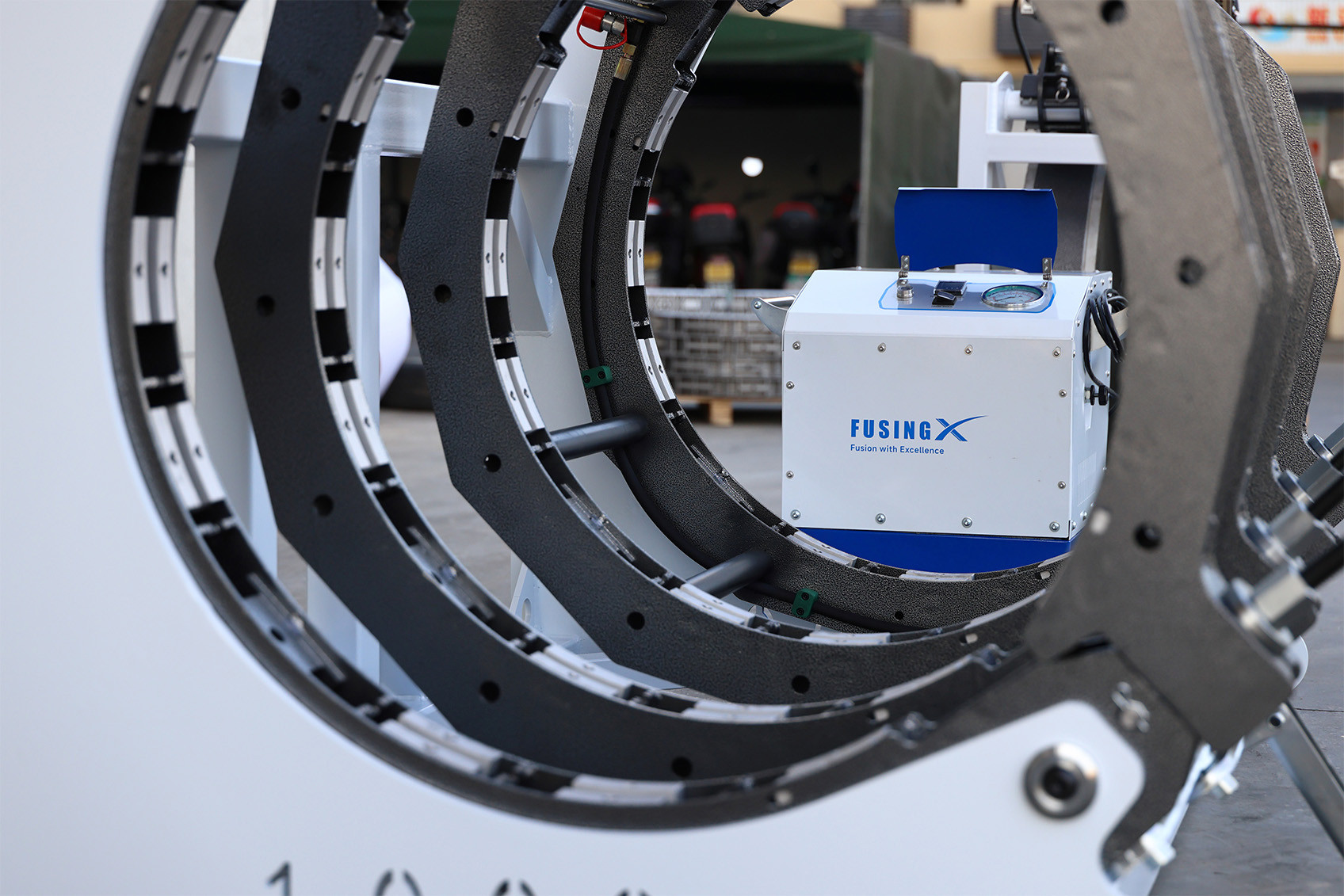

The configuration shown here comes from an FX1000, where the pads are arranged closely to form a continuous contact surface.
This setup is specifically developed for large-size welding conditions and is not used across all machine sizes.
A Design Based on Real Working Conditions
The anti-slip pad system is an original design within the FUSINGX FX series, developed with real jobsite requirements in mind.
As pipe diameter increases, stability becomes more critical.
This solution focuses on improving that stability in a straightforward and practical way, without introducing unnecessary structural complexity.
