Model
WP400B

Item specifics

Lead Time
7-15 days once order confirmed
Terms of Payment
T/T, Western Union, Paypal,X Transfer
FOB Port
Shanghai, Ningbo
Certificate
CE
MOQ
1 Set
Business type
Plastic pipe welding machines manufacturer

Review

Description

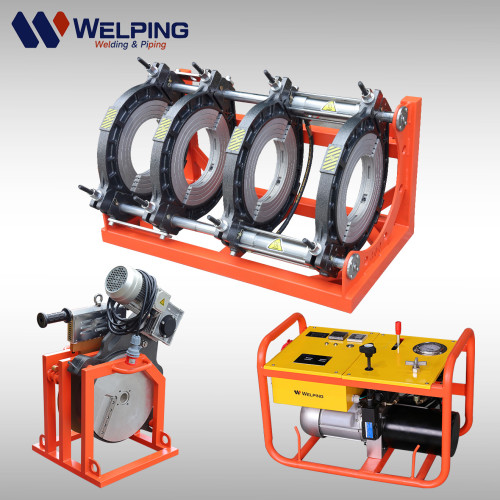

Hydraulic Butt Fusion Machine for 180MM to 400MM HDPE Pipes
Welping WP160A hydraulic butt fusion machine
DETAILS
The WP400B is a versatile machine capable of butt fusing pipe and fittings with a variety of pressure ratings. With its small footprint and light weight, it can be carried from joint to joint yet has the same rugged durability and long-lasting performance expected of any Welping butt fusion machine.

The WP400B hydraulic butt fusion machine is a mechanical butt fusion welder for joining various types of plastic pipe including HDPE,PP,PB and PVDF.

The Butt Fusion Machine is designed to butt fuse pipe sizes 180mm to 400mm. It is easy to operate and incorporates a state-of-the-art heating plate, 4 jaws machine body, electric facer, and storage stand.

FEATURES

※ Robust structure of carriage part with streamline outlook ※ Swivel handle with gear transmission of extremely smooth operating structure ※ Durable copper wiring motor, HSS blade, PTFE coating from Dupont or Daikin
STANDARD ACCESSORIES
Main Frame
1 Set
Heating Plate
1 Set
Trimmer
1 Set
Reducers
1 Set
Tool Box
1 Set
200mm hydraulic butt fusion machine
200mm butt welding machine
200mm pipe jointing fusion machine
200mm HDPE pipe welding machine
 PARAMETER
Welping WP160C 160mm butt fusion machine
Mode
WP400B
Suitable materials
 PE,PP, PB. PVDF
Range
180-200-225-250-280-315-355-400mm
Power supply
380V/50HZ, 3PH
Frequency
50HZ
Total power
7.7KW
Heating plate
5.5KW
Planing tool
1.1KW
Hydraulic Unit
1.1KW
Max Temperature of Heating plate
270℃
Temp.Deviation in Surface
 ±7ºC
Total Weight
362kg
Net weight
330kg
Packing Size( for frame )
133*68*75cm
Packing Size ( for heater, trimmer )
86*61.5*102cm
Packing Size ( for Hydraulic )
70*49*50cm
 PRODUCT DETAILS MAP
200mm butt fusion machine frame

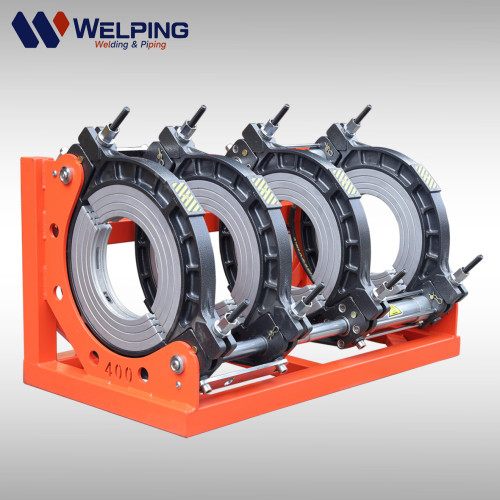

Basic Frame
· 4 Jaw Clamps to ensure precise alignment
· Italy DNP quick coupler · Chromated hydraulic cylinder made of 1045(ASTM)/S45)(JIS)/C45(DIN) steel
· Chromated integral shaft made of 1045(ASTM)/S45C(JIS)/C45(DIN) steel · Steel plate cutting clamp with sandblasting &spraying treatment · Base made of Q235 steel with spraying treatment
Title
· Standard equipping pressure more stable
· Electricity leakage protection switch
· 380V asynchronous motor

Hydraulic Pipe Fusion Machine
planning tool for butt fusion machine

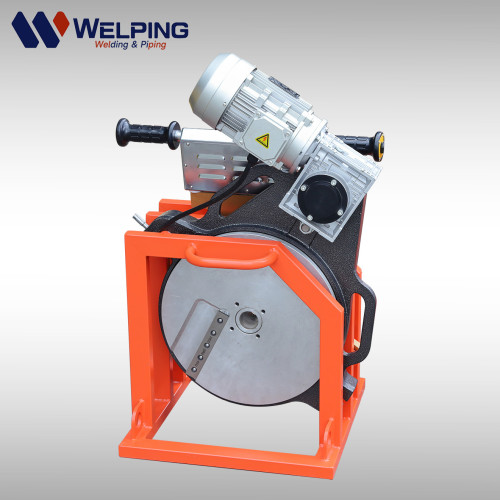

Planning tool
· HSS blade with double edge
· Casting aluminum trimmer plate, durable and anti-corrosion
· Casting aluminum frame of motor with good heat dissipation performance
· Motor with pure copper wiring

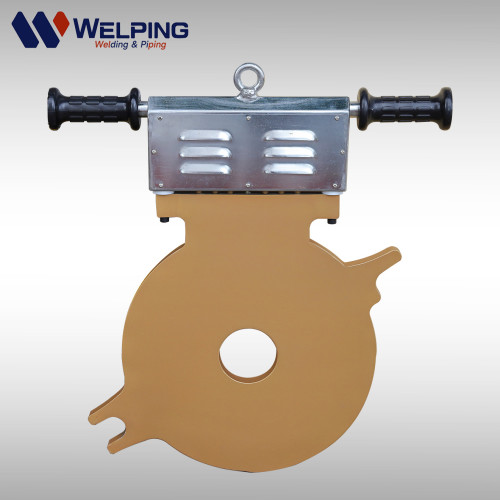

Heating Plate
· Bakelite handle with high insulating property and thermal insulation · Thermocouple temperature sensor · Heating element · Teflon Coating imported from Daikin in Japan · Aviation plug
heating plate of butt fusion machine
reducers of butt fusion machine
Reducers
180-200-225-250-280-315-355-400mm reducers
