Stub End Device for HDPE Butt Fusion Welding Machine 160–2250mm
- Model
- 160–2250mm
Item specifics
- Color
- White
- Material
- Steel
- Application
- Stub Ends, Short Pipes & Fittings
- Customization
- Available
Review
Description
Product Description

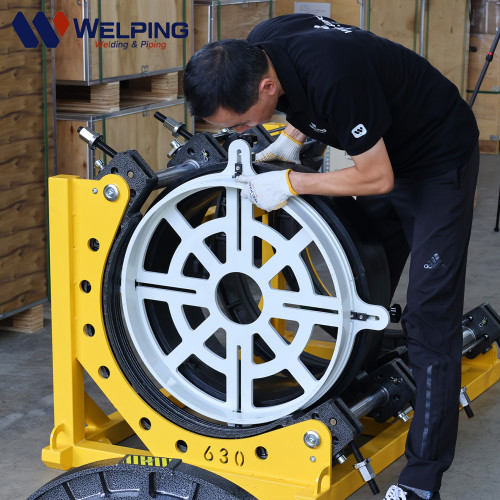

The Stub End Device is designed for butt fusion welding of stub ends, short pipes and fittings, providing secure clamping and stable positioning throughout the welding process.
Compatible with a wide range of HDPE butt fusion machines from 160 mm to 2250 mm, it features a rigid steel structure with flexible adjustment for different sizes and applications.
Custom configurations are available to suit specific machine models and welding requirements.
Product Description
| Product Name | Stub End Device |
| Application | Short Pipe & Fitting Butt Fusion |
| Compatible Machine | HDPE Butt Fusion Welding Machine |

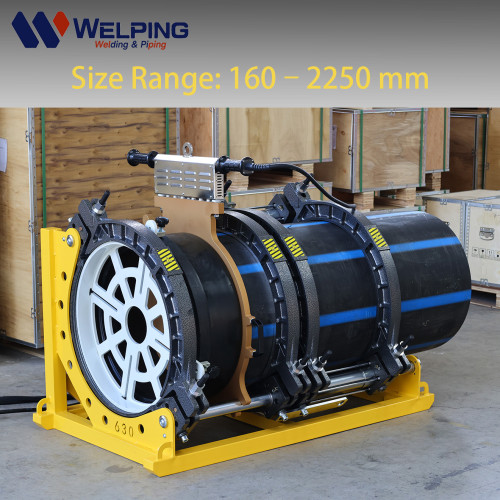

| Size Range | 160–2250 mm |
Material | Steel |
Processing | Laser Cutting & Welding |
Customization | Available |
Suitable For | Stub Ends, Short Pipes, Fittings |
Key Features
Secure Clamping for Short Components
Provides stable holding for stub ends, short pipes and fittings during butt fusion.

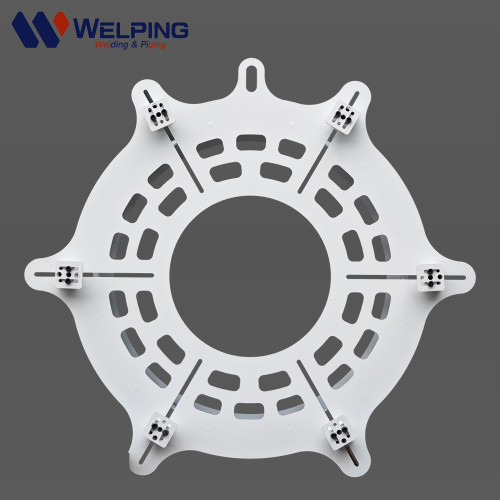

Adjustable Clamping Positions
Multiple adjustment slots allow flexible positioning for different pipe and fitting sizes.
Strong Steel Construction
Precision laser-cut and welded steel structure provides reliable support during welding.
Wide Size Range
Available from 160 mm to 2250 mm, with custom sizes available on request.
Why Use a Stub End Device?
Standard butt fusion machine clamps are mainly designed for regular-length pipes.
When welding stub ends, short pipes or fittings, there may not be enough clamping length.
The Stub End Device provides additional support and positioning, helping keep short components stable during facing, heating and fusion.
Compatible Applications
Suitable for
· Stub ends
· Short HDPE pipes
· PE fittings
· Flange connections
· Butt fusion welding applications
Construction Detail

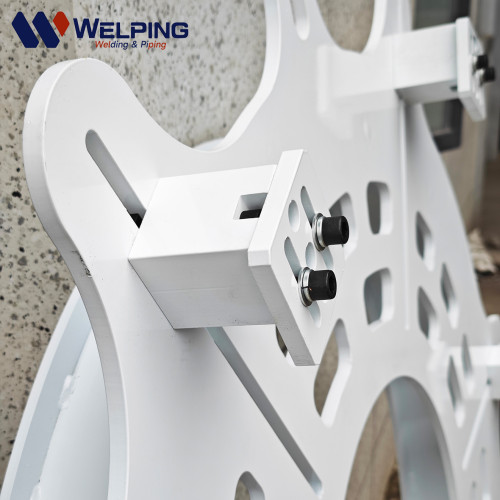

Adjustable Clamp
The clamp secures the component firmly for more stable holding during welding.
Flexible Adjustment Slot
The slot design allows flexible adjustment for different stub end sizes.
Positioning Support
Helps keep the stub end aligned and stable during butt fusion.
Need a Stub End Device for Your Fusion Machine?
Tell us your machine model and pipe size, and we can recommend or customize the suitable configuration.
