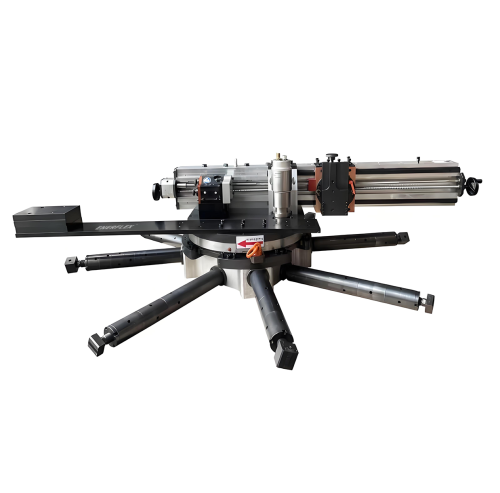

Manufacture Price High Efficiency Pneumatic Flange Facing Machine(WPF)
- Model
- WPF
Item specifics
- Color
- green or blue
- Volate
- 220V/110V
- Application material
- Stainless steel,alloy steel,carbon steel
- Beveling capacity
- 610-3000mm
- Beveling method
- internal expanding chamfering
- Beveling type
- U,single V, double V,J-type
Review
Description
INTRODUCTION
The WPF Series Flange Facer machines are versatile and multi-functional tools designed for various flange machining
applications. These machines are suitable for tasks such as flange facing, seal groove machining, weld preparation, and counter boring, making them ideal for use on pipes, valves, pump flanges, and more.
Consisting of three main parts and featuring four clamp supports, these machines are internally mounted with a small working radius. The innovative tool holder design allows for a 360-degree rotation, enhancing efficiency and flexibility in operation.
With the ability to handle a wide range of flange machining tasks, including facing, seal groove machining, weld preparation, and counter boring, these machines offer comprehensive solutions for diverse industrial needs.
●Compact structure ,Light weight ,easy to carry out.
●Have scale of feed handwheel ,improve feed accuracy.
●Automatic feeding in the axial direction and the radial direction,high efficiency.
●Horizontal, vertical, inverted, tilt etc,any direction both can processed.
●Can process flat face, water line, Continuous groove, RT groove etc.
●Driven: Pneumatic,Hydraulic,CNC.

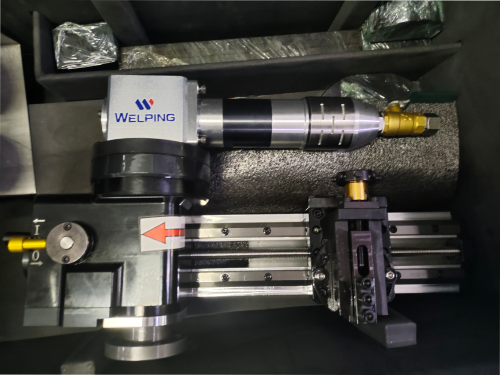

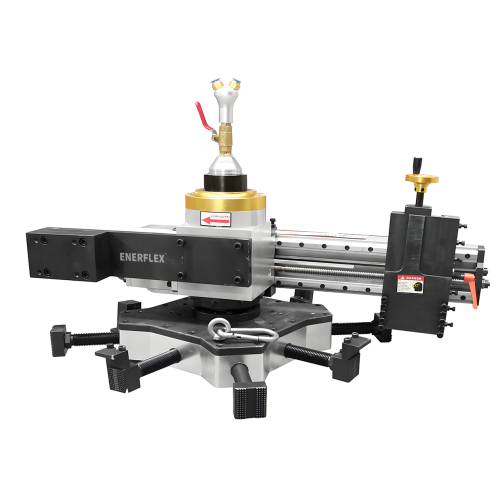

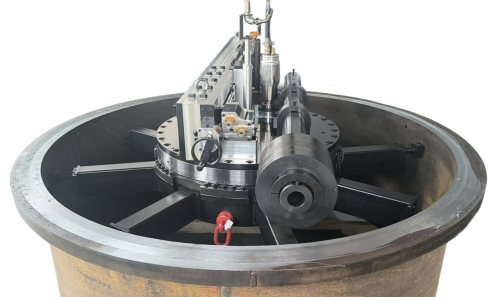

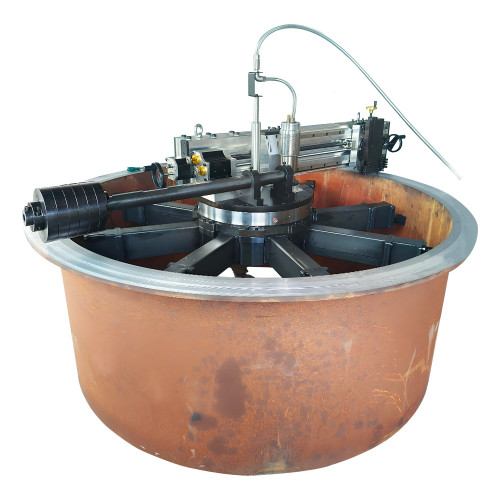

PRODUCT IMAGES
PARAMETER
|
Model No.
|
Clamping Range
|
Working Range
|
Tool Travel
|
Tool Hoder | Rotation Speed | ||
Pneumatic | Numerical | Hydraulic | OD mm | ID mm | mm | Swivel Angel | |
WPF-610 | WPS-610 | WPH-610 | Φ50-610 | Φ50-508 | 50 | ±30 degree | 0-42r/min |
WPF-1000 | WPS-1000 | WPH-1000 | Φ160-1000 | Φ158-820 | 102 | ±360 degree | 0-33r/min |
WPF-1650 | WPS-1650 | WPH-1500 | Φ500-1650 | Φ500-1500 | 102 | ±360 degree | 0-22r/min |
WPF-2000 | WPS-2000 | WPH-2000 | Φ690-2200 | Φ690-2000 | 102 | ±360 degree | 0-20r/min |
WPF-3000 | WPS-3000 | WPH-3000 | Φ1150-3000 | Φ1120-2800 | 102 | ±360 degree | 3-12r/min |
