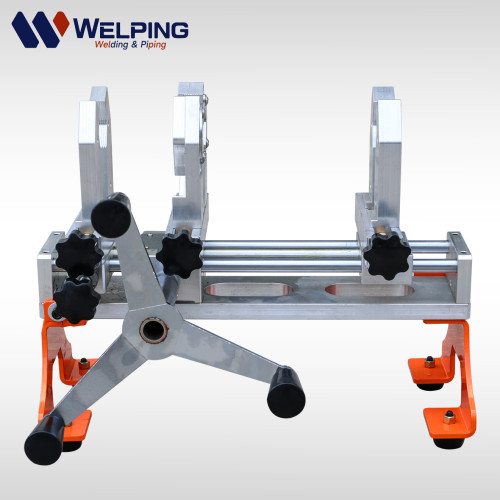

Welping Portable Socket Fusion Alignment Tool for 20–110 mm Plastic Pipes
- Model
- SFA-63 / SFA-110
Item specifics
- Welding Range
- 20–63 mm / 75–110 mm
Review
Description
Portable Socket Fusion Alignment Tool
Stable Alignment and Controlled Movement for Plastic Pipe Socket Fusion
Product Description
The Welping Portable Socket Fusion Alignment Tool is a manually operated fixture for plastic pipe socket fusion welding. Adjustable clamps and handwheel-controlled axial movement help keep pipes and fittings stable during heating and joining.
Suitable for PPR, PE, PP, PB and PVDF pipes, it can be used on a workbench or directly on installed piping with the removable base. Socket fusion heaters and heating sockets are sold separately.
Product Parameters
| Models | SFA-63 / SFA-110 |
| Applicable Materials | PPR, PE, PP, PB, PVDF |
| Operation Mode | Manual |
| Clamp Adjustment | Adjustable by manual knobs |
| Axial Movement | Handwheel-controlled linear movement |
Base | Removable |
Working Modes | Workbench and in-position use |
Insertion Depth Control | Manual marking required |
Packaging | Metal case |
Model Specifications
| Model | Working Range | Available Sizes | Net Weight |
| SFA-63 | 20–63 mm | 20, 25, 32, 40, 50, 63 mm | 7.3 kg |
| SFA-110 | 75–110 mm | 75, 90, 110 mm | 11.2 kg |
Product Features
Stable Alignment
Helps keep pipes and fittings securely aligned during socket fusion welding.
Controlled Axial Movement
The large handwheel provides smooth and controlled linear movement.
Adjustable Clamping Width
Star-shaped knobs allow easy adjustment for different pipe sizes.
Removable Base
Suitable for both workbench operation and in-position welding.
Product Details

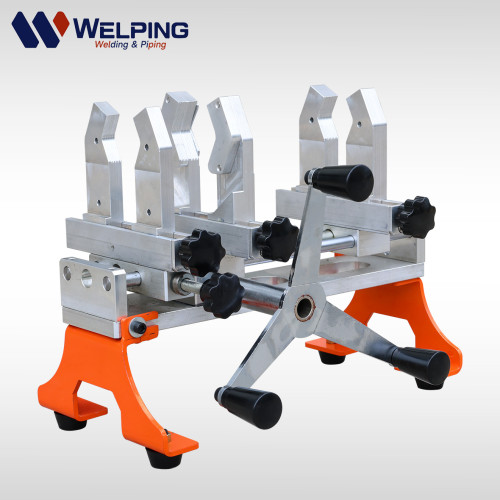

Adjustable Clamping Knobs
The black star-shaped knobs adjust the opening width of the clamps according to the pipe or fitting diameter.

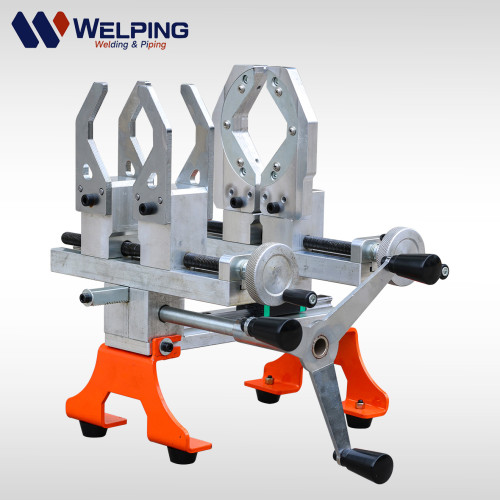

Large Manual Handwheel
The large handwheel controls the left-to-right movement of the outer movable clamping unit.

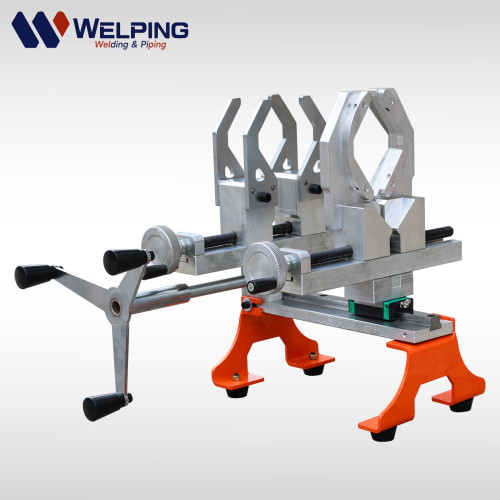

Linear Guide Structure
The movable clamping unit travels along the guide rail for smoother and more stable movement.

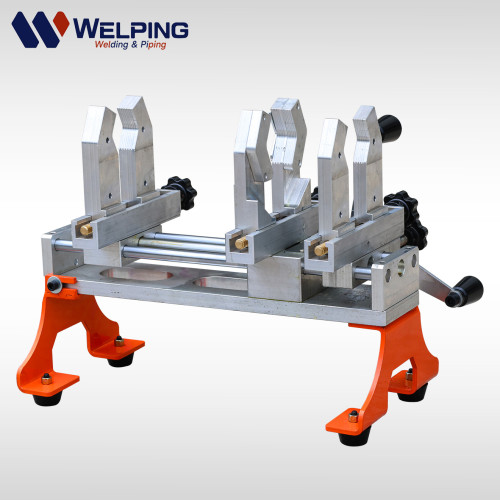

Removable Support Base
The orange base can be removed for work on installed or suspended piping.
Optional Products
Title
Sample Content
Title
Sample Content
Frequently Asked Questions
Is the socket fusion heater included?
No. The socket fusion heater and heating sockets are sold separately.
How is the clamping width adjusted?
The clamping width is adjusted manually using the black star-shaped knobs.
How does the movable clamp travel?
The large handwheel controls the axial movement of the outer movable clamping unit.
Does the tool control the insertion depth?
No. The required insertion depth should be marked manually before welding.
Can the tool be used on installed pipes?
Yes. The orange base can be removed for suitable in-position welding applications.
Does the tool require electricity?
No. The tool is fully manually operated.
