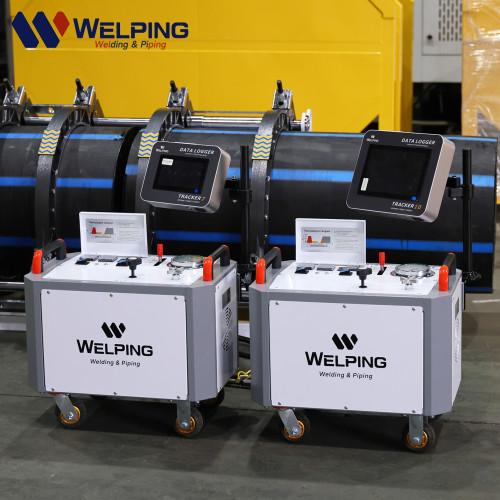

HDPE Butt Fusion Data Logger with Welding Record & Traceability | Tracker 7 / Tracker 10
HDPE Butt Fusion Data Logger with Welding Record & Traceability | Tracker 7 / Tracker 10
HDPE Butt Fusion Data Logger with Welding Record & Traceability | Tracker 7 / Tracker 10
HDPE Butt Fusion Data Logger with Welding Record & Traceability | Tracker 7 / Tracker 10
HDPE Butt Fusion Data Logger with Welding Record & Traceability | Tracker 7 / Tracker 10
HDPE Butt Fusion Data Logger with Welding Record & Traceability | Tracker 7 / Tracker 10

HDPE Butt Fusion Data Logger with Welding Record & Traceability | Tracker 7 / Tracker 10

Model
Tracker 7 / Tracker 10

Item specifics

Application
HDPE Butt Fusion
Label Options
Black Label / White Label
Welding Standards
ISO 21307 / DVS 2207 / GOST R 55276 / Custom
Monitoring
Pressure / Plate & Ambient Temperature
Storage Capacity
10,000+ Weld Records
Printing
USB / CSV / Local Storage / TF Card
Language
9 Languages
Printing
Serial / Bluetooth Printer
Communication
RS485 / TCP / Bluetooth LE

Review

Description

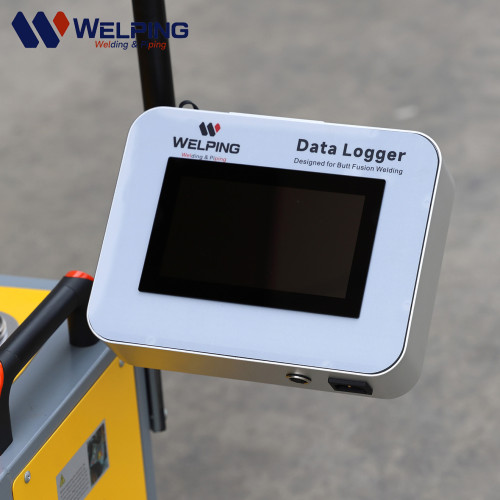

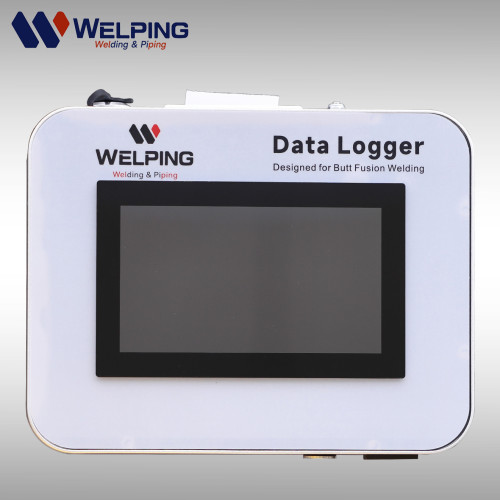

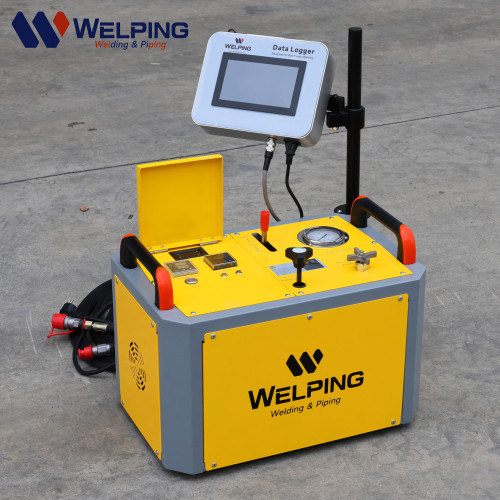

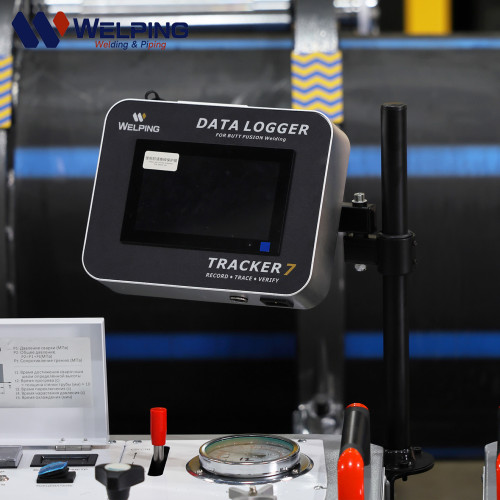

Tracker 7 / Tracker 10 HDPE Butt Fusion Data Logger
For Welding Data Recording, Process Guidance and Quality Traceability
Product Overview
Professional Data Logger for HDPE Butt Fusion Welding
Tracker 7 / Tracker 10 monitors welding pressure, heating plate temperature, and ambient temperature in real time, while recording key data throughout the butt fusion process.

It also provides step-by-step welding guidance, automatic result evaluation, data export, and joint traceability. Supports ISO 21307, DVS 2207, GOST R 55276, and custom welding parameters.
Technical Specifications
Product Function
Description
Real-Time Monitoring
Pressure, heating plate temperature and ambient temperature
Welding Guidance
13-step butt fusion welding guidance
Automatic Calculation
Calculates key welding parameters based on pipe size, wall thickness, material and standard
Welding Data Recording
Records pressure, temperature, time, pipe, machine and project information
Result Evaluation
Compares actual data with standard values and evaluates the welding result
Data Storage
Stores more than 10,000 welding records
Data Export & Printing
Supports data export and individual or batch welding record printing
Technical Specifications
Model
Tracker 7
Tracker 10
Touchscreen
Capacitive
Capacitive
Display Size
7"
10"
Display Resolution
1024 × 600
1280 × 800
Overall Dimensions
265 × 215 mm
317 × 270 mm
Net Weight
1969 g
2823 g
Input Voltage
110/220 V, 50/60 Hz
110/220 V, 50/60 Hz
Rated Power
30 W
35 W
Pressure Range
0–16 MPa
0–16 MPa
Temperature Range
0–300°C
0–300°C
Temperature Sensor
PT100
PT100
Operating Temperature
-10°C ~ 60°C
-10°C ~ 60°C
System & Compatibility
Item
Specification
Application
HDPE Pipe Butt Fusion Welding
Operating System
Android
Data Capacity
10,000+ Welding Records
Welding Standards
ISO 21307 / DVS 2207 / GOST R 55276 / Custom
Pipe Standards
ISO 4427 / ISO 4437 / TIS 982 / Other
PE Materials
PE100 / PE80 / PE63
Communication
RS485 / TCP / BLE Bluetooth
USB Interface
USB-A
TF Card Capacity
Up to 512 GB
Wi-Fi
2.4 GHz
Installation
Bracket Mounting
Languages
9 Languages
Machine Compatibility
Universal for 160–1200 butt fusion machines; models above 1200 require customization
Real-Time Data Monitoring
Real-Time Data Monitoring
Monitor hydraulic pressure, heating plate temperature, and ambient temperature in real time with clear visual curves.
13-Step Welding Guidance
Step-by-step guidance covers the complete butt fusion process from preparation and facing to heating, changeover, pressure-up, and cooling.
Automatic Welding Parameter Calculation
Automatically calculates key welding parameters based on pipe size, wall thickness, material, and selected welding standard.
Welding Record Management
Organizes welding records by project, operator, result, date, and time for easier traceability and review.
Automatic Welding Result Evaluation
Compares actual welding data with standard values and identifies qualified or unqualified results with clear fault indications.
Data Storage, Export & Printing
Stores more than 10,000 welding records and supports data export, individual printing, and batch printing.
DOWNLOAD
Tracker 7 / Tracker 10 Data Logger User Manual
PRACTICAL DETAILS
One-Touch Power Control
Simple operation with clear status indication.
Built-in Printer
Print welding records on site, with one roll of printing paper supplied as standa
Protected USB Port
Easy data export and record backup with a protective cover for field use.
Reliable Connections
Secure interfaces for power and sensor connection.

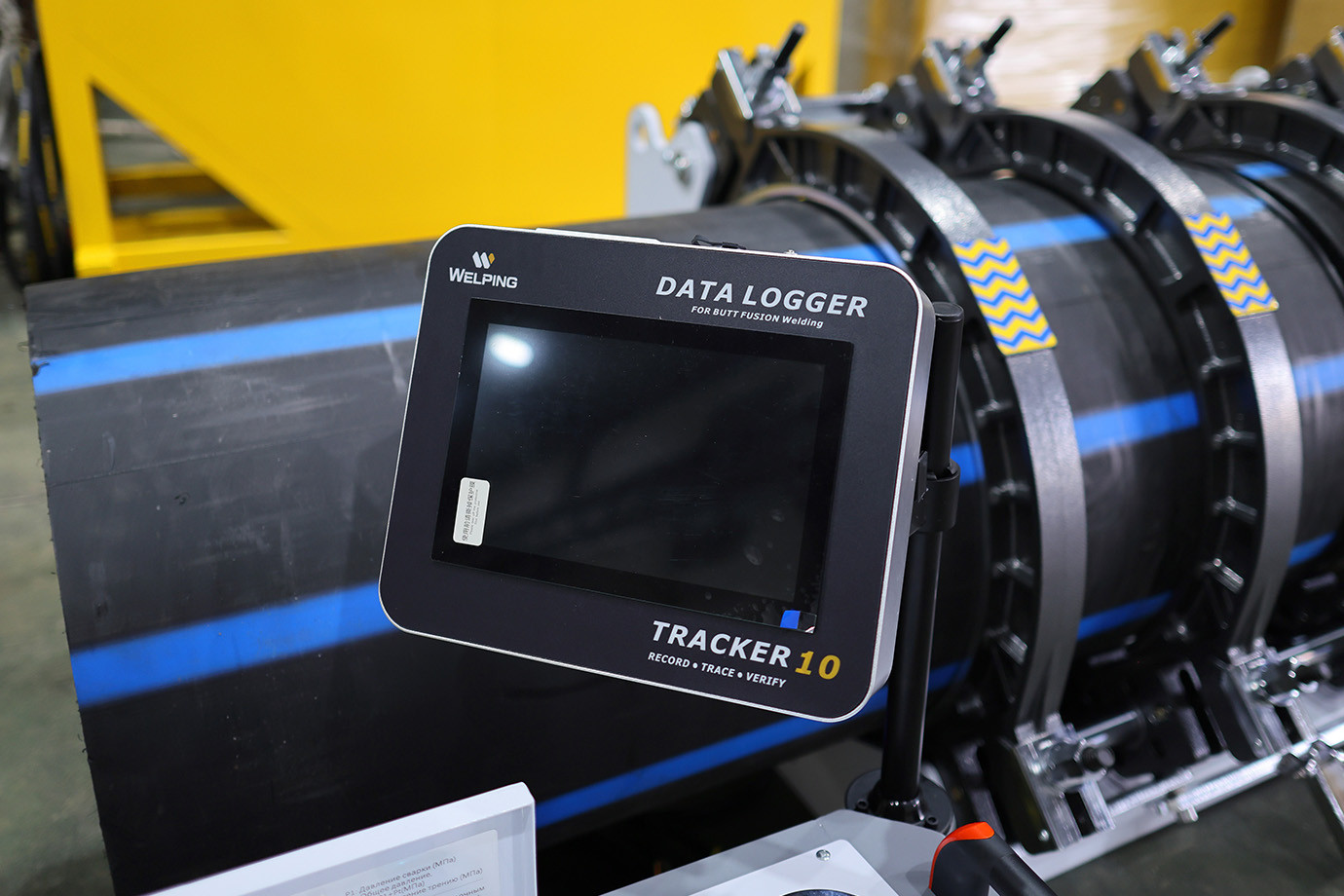

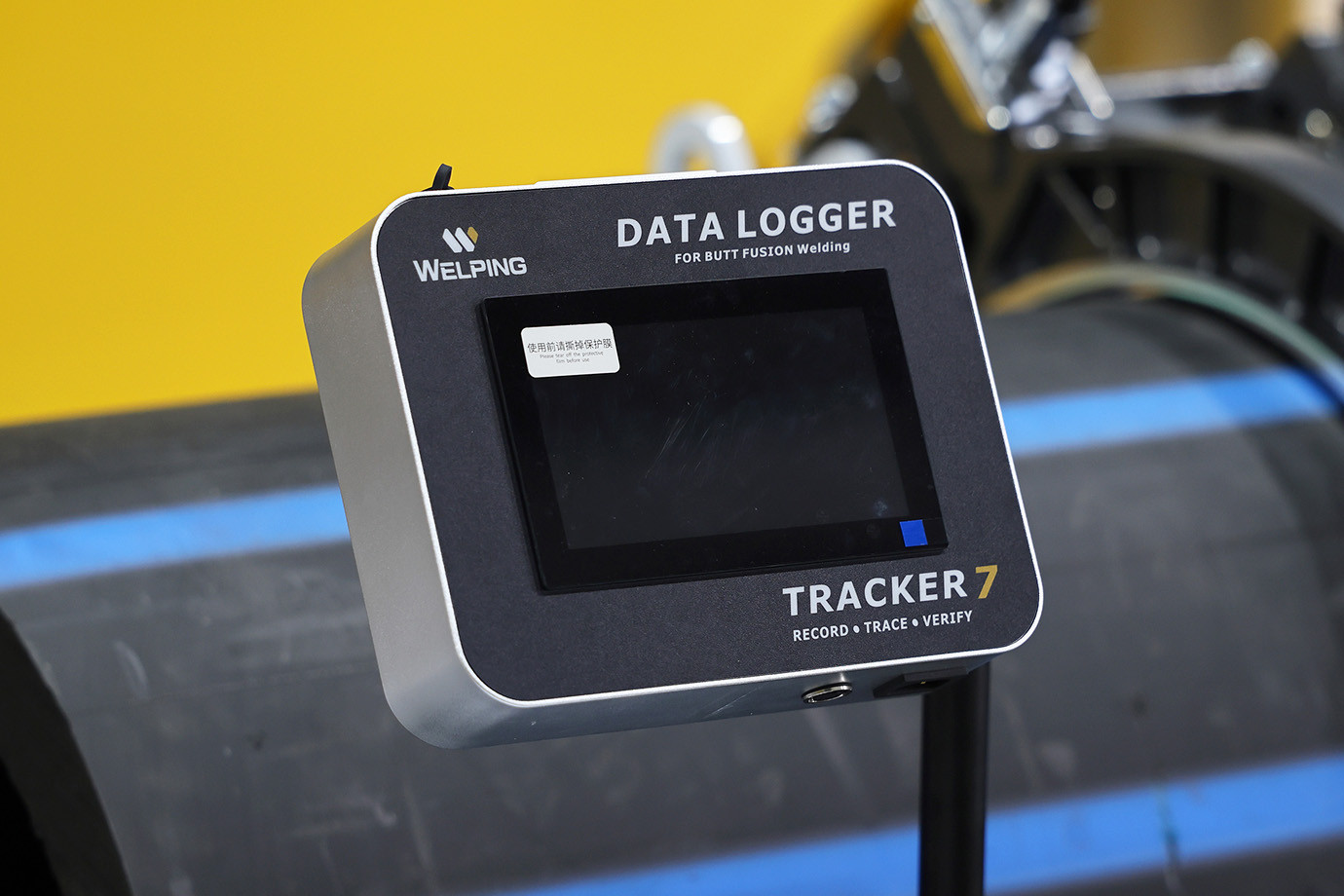

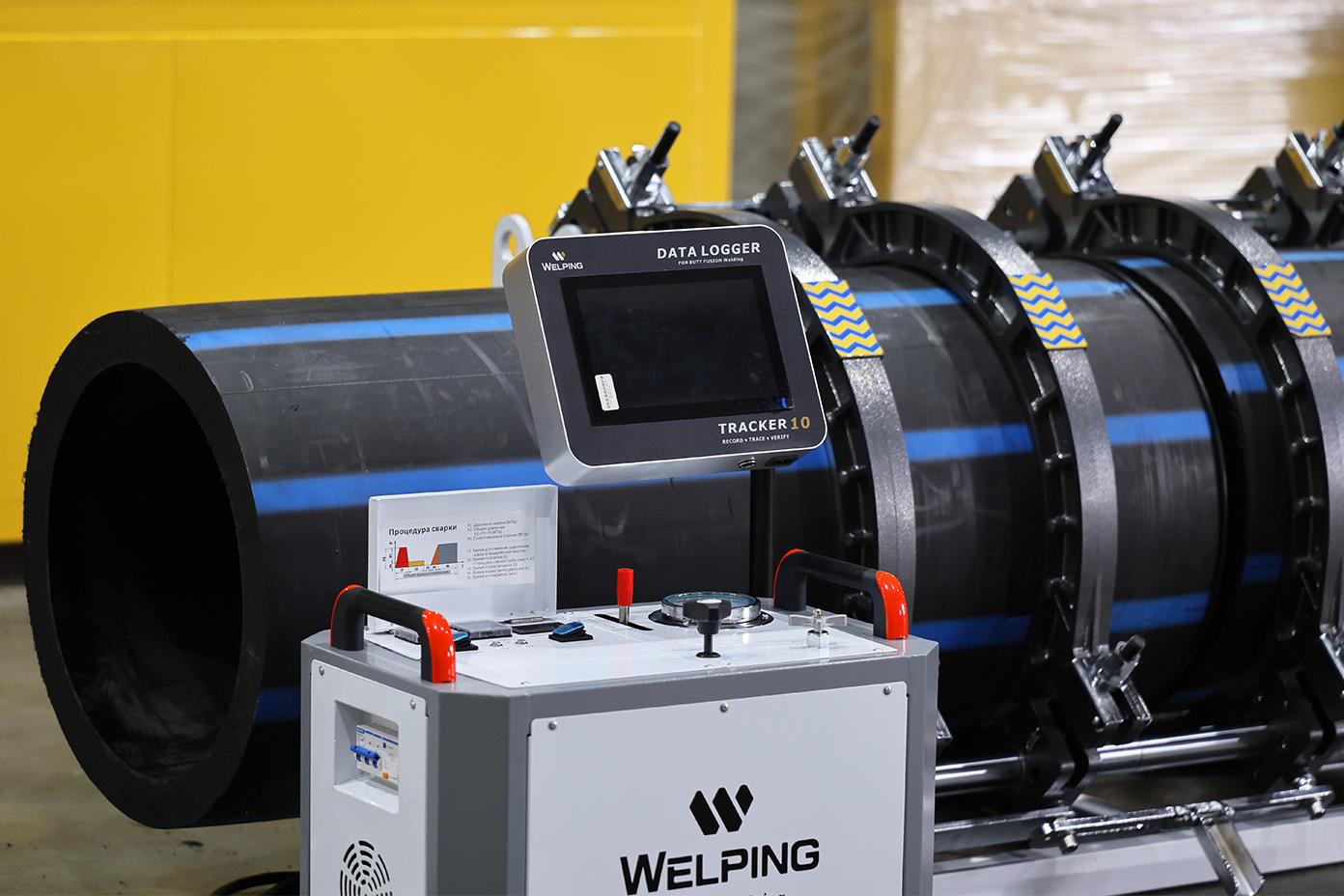

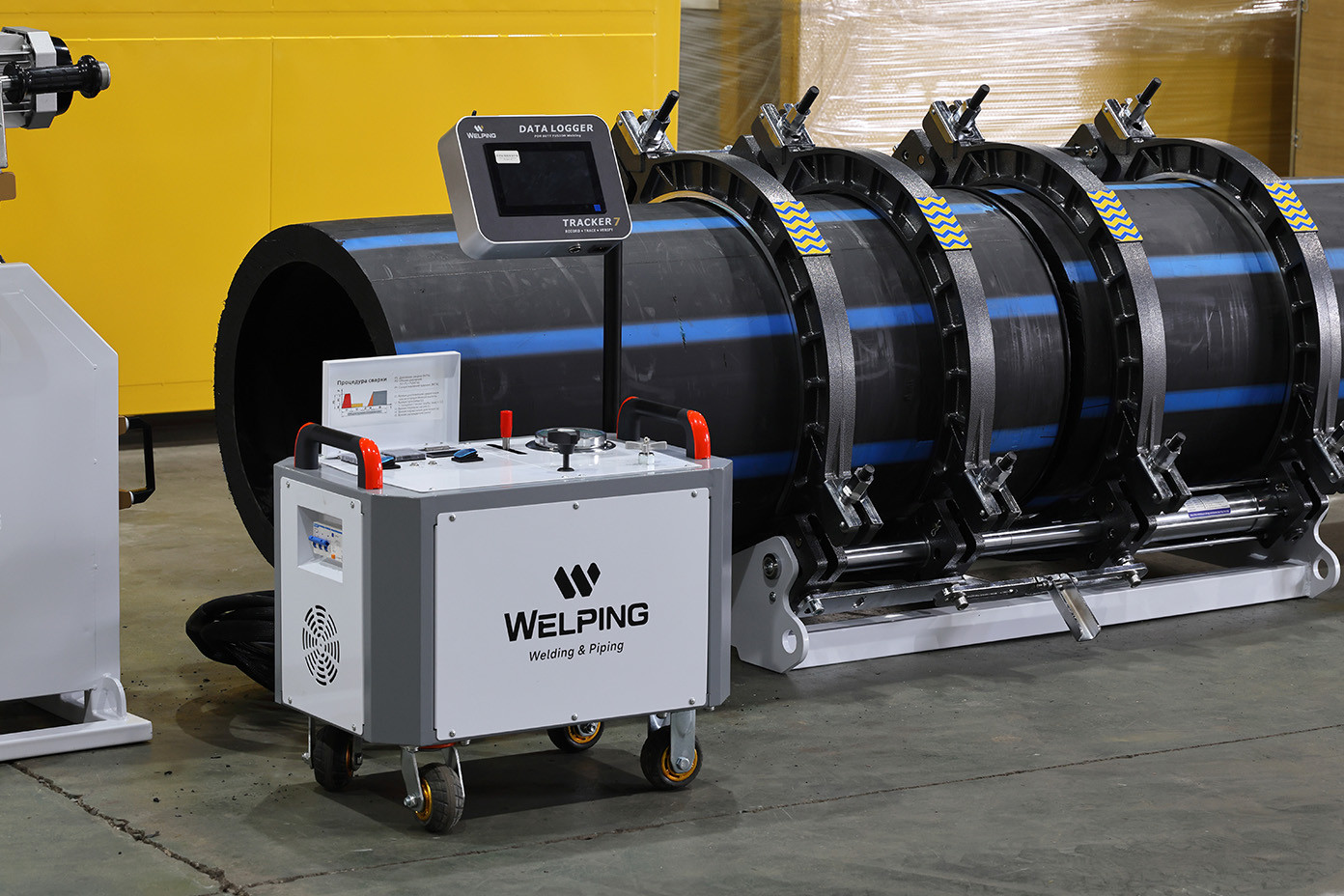

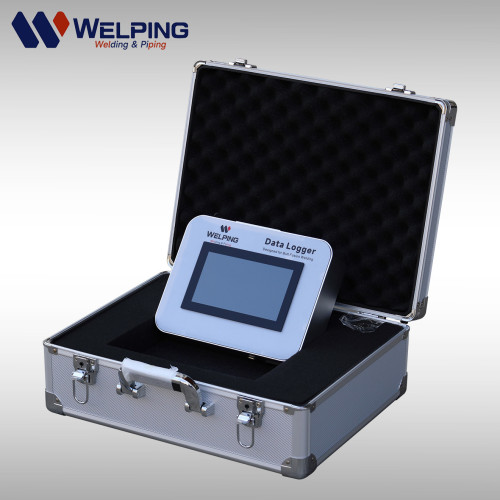

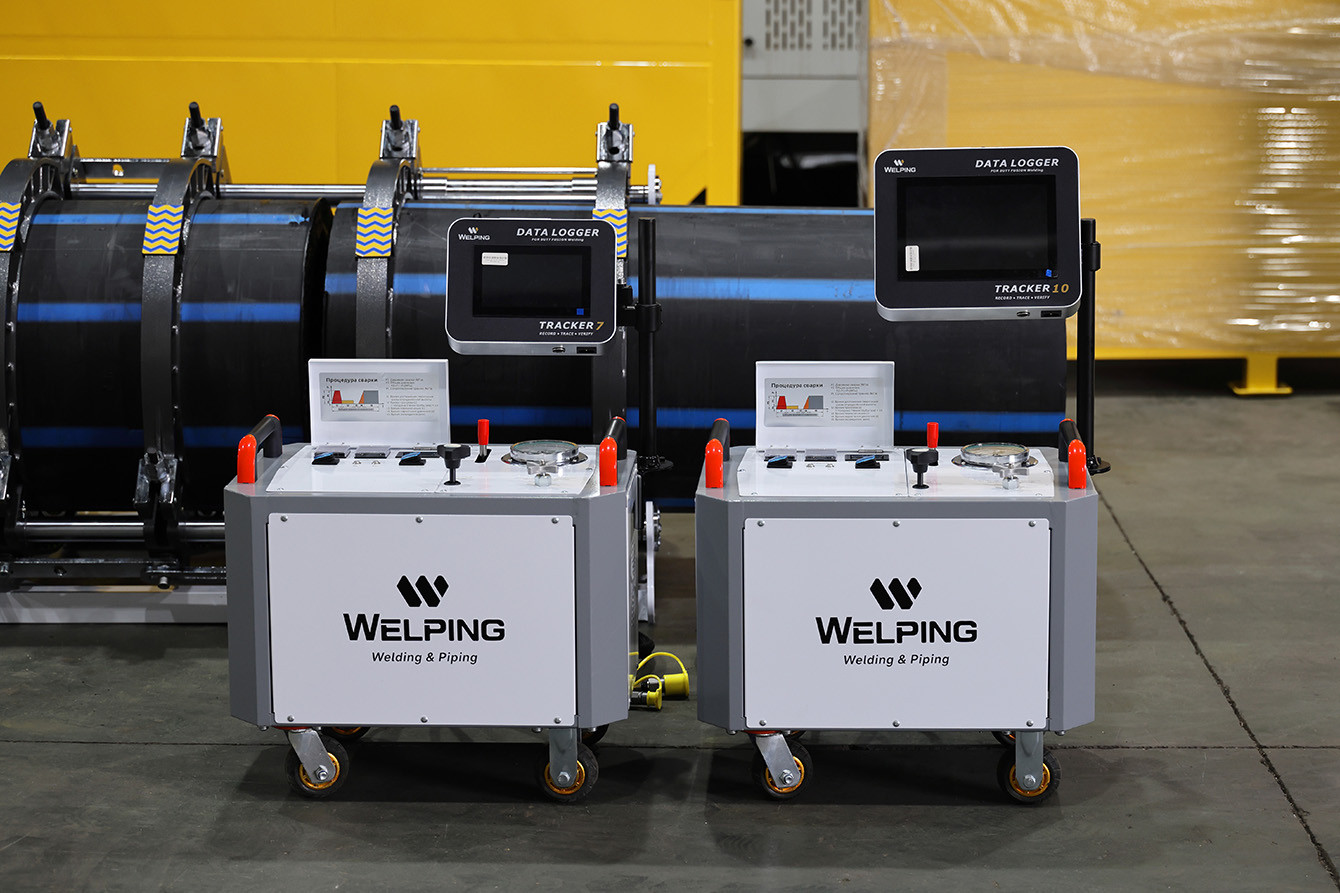

Product Gallery
Operation Demo with Tracker Data Logger
