1"-12" Light Weight Electric Hydraulic Roll Grooving Machine for Steel Pipe SCH10/SCH40
- Model
- RG-5X
Item specifics
- Grooving Capacity
- 1"-12"
- Max Wall Thickness
- 8mm
- Power Supply
- 1100W
- Output Speed
- 23RPM
Review
Description
1"-12" Light Weight Electric Hydraulic Roll Groover
Model RG-5X Electric Hydraulic Roll Grooving Machine is designed to roll grooves on steel pipes and stainless steel from 1"-12" (DN33~DN300) SCH10/SCH20,1"-8" (DN25~DN200) SCH10/SCH40.
Appropriate for various daily tasks involving fire-fighting pipes,this roll groover is a comprehensive tool that includes a motor, hydraulic feeding pump, foot switch, and pipe stand.
The motor's built-in high-performance gear reduction system enables a compact design and reduced noise levels.

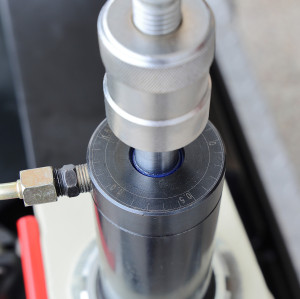

The unique combination of the hydraulic feeding pump and the groove depth lock knob guarantees premium grooves and optimal efficiency.
PARAMETER
|
Mode
|
RG-5X
|
|
Suitable materials
|
Carbon Steel,Stainless Steel
|
|
Capacity
|
for 1"-8" steel pipe SCH10/SCH40
|
for 10"-12" steel pipe SCH10/SCH20 | |
|
Power supply
|
220V/110V
|
Frequency | 50HZ /60HZ |
Max wall thickness | 8mm |
Motor power | 1100W |
Output speed | 23RPM |
Packing gross weight | 95kgs |
Packing size | 75*40*77cm |
ORDERING INFORMATION
|
Catalog Number
|
Phase
|
Power
|
Voltage/Frequency
|
|
900050
|
Single
|
1100W
|
220V,50/60HZ
|
|
900051
|
Single
|
1100W
|
110V,50/60HZ
|
STANDARD PARTS
|
Item Number
|
Description
|
Net weight
|
|
|
911106
|
Drive roller 1"- 1 ½" (φ33~φ48)
|
1.15kg
|
|
|
911107
|
Drive roller 2"-3"(φ60~φ89)
|
1.15kg
|
|
|
911108
|
Drive roller 3 ½"~6" (φ101~φ168)
|
1.70kg
|
|
911019 | Drive roller 8"-12"(φ219~φ325) | 1.70kg | |
912041 | Groove roller 1"- 1 ½" (φ33~φ48) | 0.90kg | |
912042 | Groove roller2"-6" (φ60-φ168) | 0.80kg | |
912043 | Groove roller 8"-12"(φ219~φ325) | 0.70kg | |
998078 | Pipe stand for 1"-12" | 6.90kg | |
998026 | Foot switch | 1.50kg | |
PRODUCT DETAILS MAP
Pipe Stand
for 1"-12" steel pipe
Drive Roller
one set 1"- 1 ½" (φ33~φ48)
one set 2"-3" (φ60~φ89)
one set 3 ½"-6" (φ101~φ168)
one set 8"-12"(φ219~φ325)
Groove roller
one set 1"- 1 ½" (φ33~φ48);
one set 2"-6"(φ60~φ168);
one set 8"-12"(φ219~φ325);
Foot Switch
