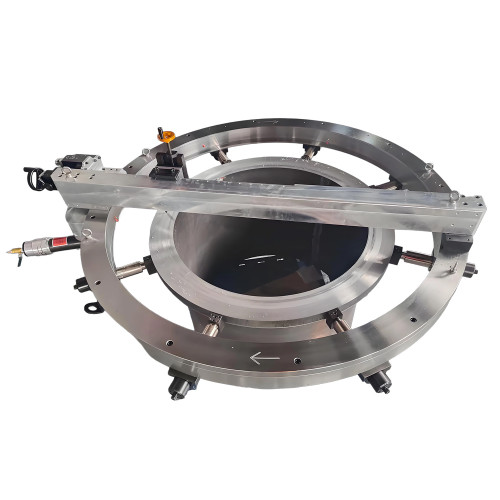

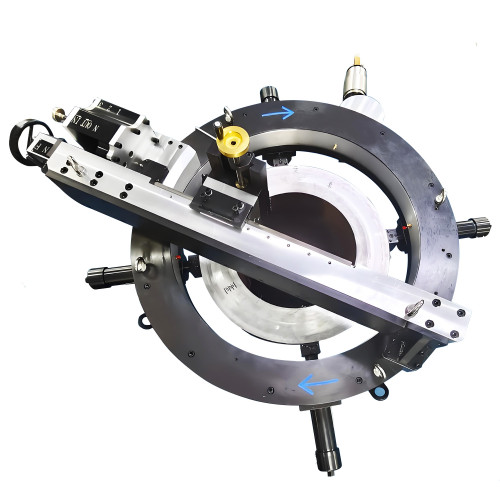

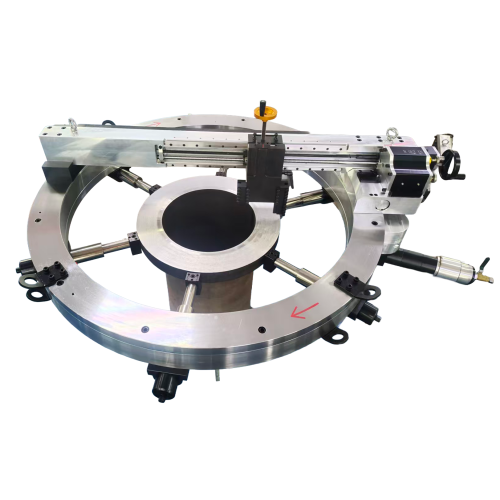

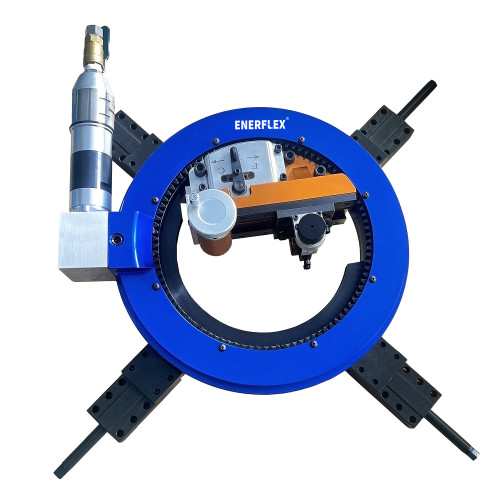

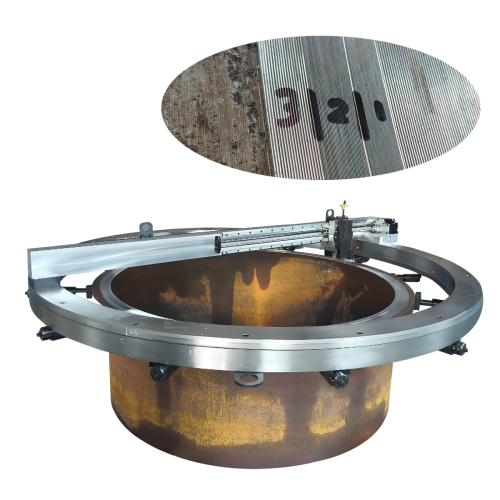

Manufacture Price Penumatic Flange Facing Machine External Card Flange Processing Machine(WPDF)
- Model
- WPDF
Item specifics
- Color
- green or blue
- Volate
- 220V/110V
- Application material
- Stainless steel,alloy steel,carbon steel
- Beveling capacity
- 300-3000mm
- Beveling method
- external clamping chamfering
- Beveling type
- U,single V, double V,J-type
Review
Description
INTRODUCTION
WPDF Series Mounted Flange Facer machines are designed for precision facing and end-prepping of various types of flange surfaces. These machines feature a belt-driven system with adjustable cam tensioners powered by a pneumatic motor, ensuring accurate and consistent results. The slide and compound components are guided by a precision ball screw and linear rails, creating a rigid system with smooth travel for optimal performance.
The compound on these machines can swivel to any angle off vertical, offering versatility to machine a range of gasket surfaces.
Externally mounted, these flange facers securely clamp onto the outside diameter of the flange using quick-set adjustable legs and jaws. Similar to our ID mount models, these machines are also capable of machining a continuous groove spiral serrated flange finish. Additionally, some models can be configured to machine grooves for RTJ (Ring Type Joint) gaskets, providing further flexibility and functionality for various flange machining needs.
●The modular design concept enables quick installation and disassembly,meeting various processing environments.
●The equipment adopts precision circular guide rails, with long service life and high stability.
●The machine operates smoothly without vibration.
●High precision mechanical transmission mechanism ensures horizontal,inverted, and vertical installation of the machine.
●The fixed method adopts external card type multi angle support, which is more stable in fixation.
●The tool holder is rotatable to meet different processing environments.
PRODUCT IMAGES
PARAMETER
|
Model No.
|
Clamping Range
|
Working Range
|
Tool Travel
|
Tool Hoder | Rotation Speed | ||
Pneumatic | Numerical | Hydraulic | OD mm | mm | mm | Swivel Angel | |
WPDF-300 | WPDS-300 | / | Φ50-300 | Φ0-300 | 50 | ±30 degree | 0-28r/min |
WPDF-610 | WPDS-610 | WPDH-610 | Φ150-610 | Φ0-610 | 95 | ±30 degree | 0-24r/min |
WPDF-1000 | WPDS-1000 | WPDH-1000 | Φ500-1000 | Φ0-1000 | 95 | ±30 degree | 0-20r/min |
WPDF-1500 | WPDS-1500 | WPDH-1500 | Φ1000-1500 | Φ0-1500 | 95 | ±30 degree | 0-15r/min |
WPDF-2000 | WPDS-2000 | WPDH-2000 | Φ1500-2000 | Φ0-2000 | 95 | ±30 degree | 0-13r/min |
WPDF-2500 | WPDS-2500 | WPDH-2500 | Φ1500-2500 | Φ0-2500 | 95 | ±30 degree | 0-10r/min |
WPDF-3000 | WPDS-3000 | WPDH-3000 | Φ2500-3000 | Φ0-3000 | 95 | ±30 degree | 0-8r/min |
