PTC140 Bench-Top Pipe Cutting Machine for Metal Pipes
- Model
- PTC140
Item specifics
- MaxWall thickness
- 3 mm for metal pipes; 5 mm for PVC pipes
- Pipe Diameter
- 12–141 mm
- Output Speed
- 0-350 R.P.M
- Color
- Black and Yellow
- Package Size
- 37*35*56cm
- Motor
- 220V/ 500W 1Ph
- Net Weight
- 20kgs
Review
Description

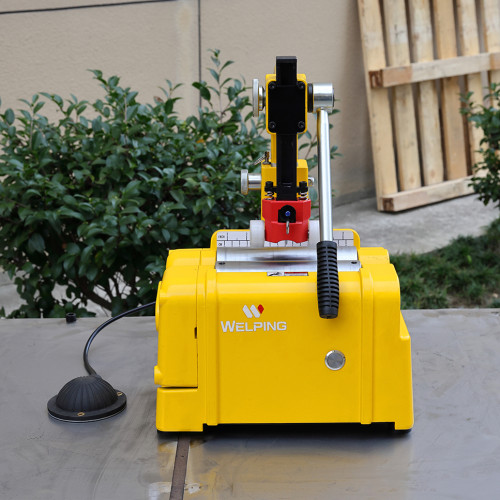

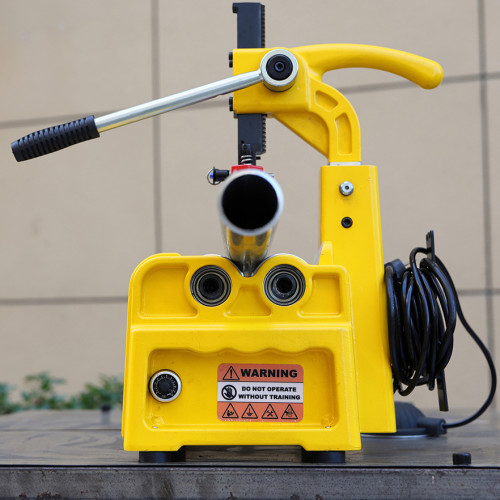

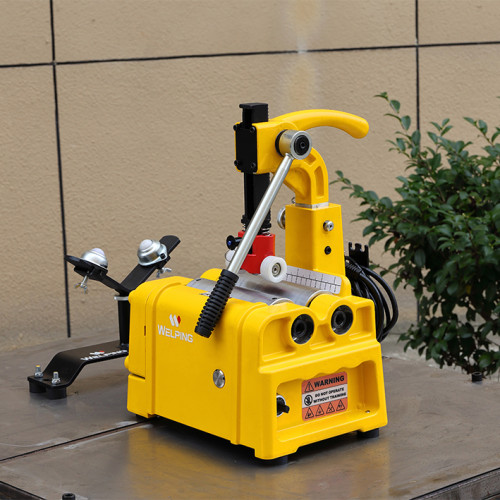

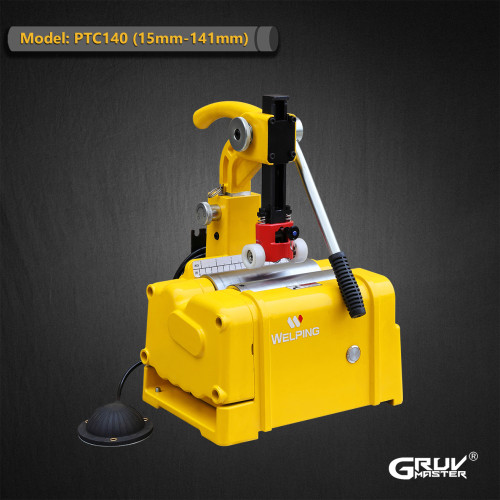

PTC140 Desktop Pipe Cutting Machine
Cutting Range: 12–141 mm | For Thin-Wall Metal & PVC Pipes
Product Overview
Model： | PTC140 |
Cutting Capacity： | 12–141 mm |
Max Pipe Wall Thickness: | 3 mm for metal pipes;5 mm for PVC pipes |
Output Speed: | 0 – 350 RPM |
Motor: | 220V / 500W / 1Ph |
Net Weight: | 20 kg |
Applicable Materials: | thin-wall steel, stainless steel, copper, aluminum, and PVC pipes |
Feed Type | Lever feed / Screw feed |
Power Options | Corded / Lithium battery-powered |
Height Adjustment | 3 levels |
Design & Operation
| Model NO. | PTC140 | Automation | Manual |
| Warranty | 1 Year | Transport Package | Carton |
| Trademark | Welping | Origin | China |
| HS Code | 8461500090 | Manufacturing Capacity | 2000pieces/Year |
Packing Size | 37*35*56cm | Gross weight | 32.000kg |
Two Feed Designs for Different Cutting Needs
The PTC140 is available in screw-feed and lever-feed versions. Watch the videos below to compare how each design operates.
PTC140 — Screw Feed Type
Turn the top handle to gradually lower the cutting wheel and control the cutting pressure. Recommended for pipes above 65 mm in diameter, this design makes feeding easier when cutting larger pipes.

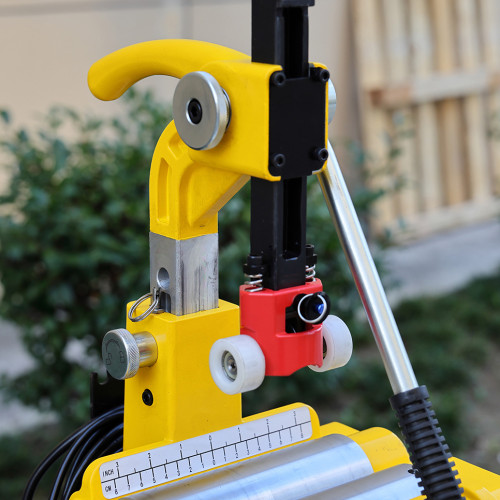

PTC140 — Lever Feed Type
Lower the operating lever to feed the cutting wheel against the pipe. Recommended for pipes from 12 to 65 mm in diameter, this design provides quick, convenient operation for smaller pipes.
Key Features
Compact Structure & Rigid Aluminum Body
· Compact design for desktop and workbench use, easy for single-person handling
· All-aluminum integrated body ensures structural rigidity and long-term reliability
· Supports color customization and private branding
High Cutting Efficiency
· Small-diameter pipes are suitable for high-speed cutting, max speed of up to 350 RPM
· 10-level stepless speed control switchprovides optimized cutting speeds for pipesof different diameters
· The cutter head features a quick-releasedesign, allowing fast replacement
Fast Operation & Adjustable Cutting Control
· The handle features an adjustable structure. When the handle position is not suitable for cutting, it can be pulled out sideways for quick adjustment.
Wide Compatibility for Thin-Wall Pipes
· Suitable for various thin-wall pipes, including steel, stainless steel, copper, aluminum, and PVC
· Three adjustable height levels adapt easily to different pipe sizes
Dual Power Modes
· Operates with AC power or a lithium battery
· Battery-powered version suitable for explosion-sensitive cutting environments（the current battery interface fits MAKITA batteris）
Adjustable Cutting Speed
· Cutting speed can be adjusted according to pipe diameter; high speed is recommended for small pipes, and low speed for large pipes.
Product Demonstration
