Model
WP1600A

Item specifics

Lead Time
7-15 days once order confirmed
Terms of Payment
T/T, Western Union, Paypal,X Transfer
FOB Port
Shanghai, Ningbo
Certificate
CE
MOQ
1 Set
Business type
Plastic pipe welding machines manufacturer

Review

Description

1200/1600mm Hydraulic Butt Fusion Welding Machine for PE Pipes
Welping WP160A hydraulic butt fusion machine
DETAILS
HDPE pipe has been used extensively in the piping applications of municipal, industrial, marine, mining, landfill, duct and agricultural industries. Butt fusion welding is an effective, trouble free connecting method for PE, HDPE pipes. In pressurized piping applications, butt fusion welding machine can provide reliable joints, even as strong as the complete pipe.

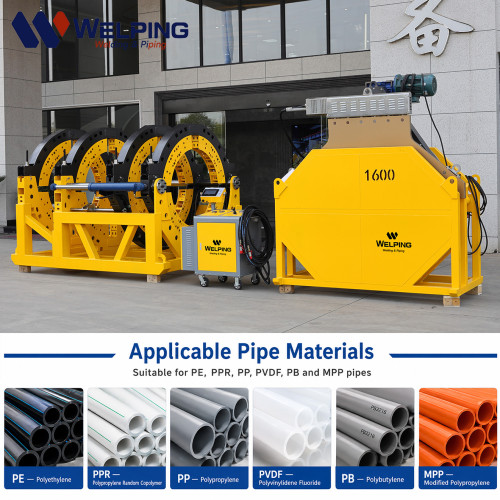

The 1600mm butt welding machine is a mechanical butt fusion welder for joining various types of plastic pipe including HDPE,PP,PB and PVDF.

The Butt Fusion Machine is designed to butt fuse pipe sizes 1200mm to 1600mm. It is easy to operate and incorporates a state-of-the-art heating plate, 4 jaws machine body, electric facer, and storage stand.

FEATURES

※ Robust structure of carriage part with streamline outlook ※ Swivel handle with gear transmission of extremely smooth operating structure ※ Durable copper wiring motor, HSS blade, PTFE coating from Dupont or Daikin
STANDARD ACCESSORIES
Main Frame
1 Set
Heating Plate
1 Set
Trimmer
1 Set
Reducers
1 Set
Tool Box
1 Set
200mm hydraulic butt fusion machine
200mm butt welding machine
200mm pipe jointing fusion machine
200mm HDPE pipe welding machine
 PARAMETER
Welping WP160C 160mm butt fusion machine
Mode
WP1600A
Suitable materials
 PE,PP, PB. PVDF
Range
1200-1400-1600mm
Power supply
380V
Frequency
50HZ
Pressure adjusting range
0-25Mpa
Total power
61.5  KW
Heating plate
50 KW
Planing tool
7.5 KW
Hydraulic Unit
4 KW
Max Temperature of Heating plate
270℃
Temp.Deviation in Surface
 ±5ºC
Total Weight
5200kg
Packing Volume
21CBM
 PRODUCT DETAILS MAP
200mm butt fusion machine frame

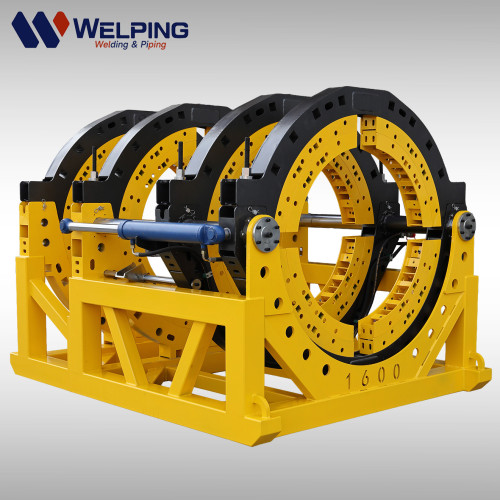

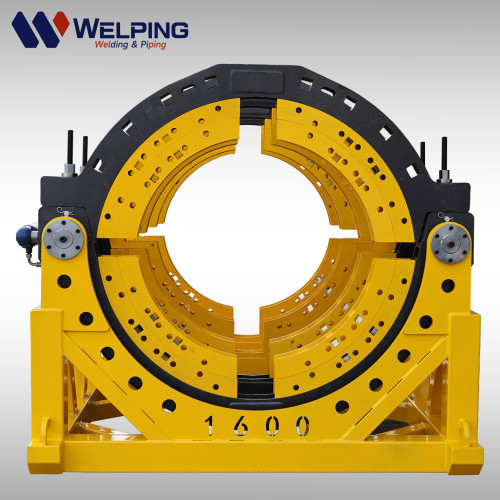

Basic Frame
· Complete welded steel structure, strong, free of distortion · Sturdy steel clamping parts with complex reinforced structure · Balanced upper and lower clamping sets,for easy pipe tightening operation · Separate actuation hydraulic cylinder design, for easy installation & maintenance

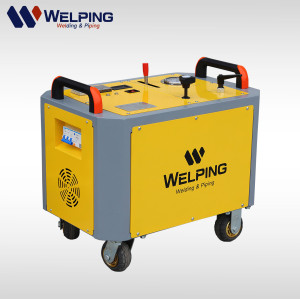

Hydraulic Station
· Integrated hydraulic and electrical control,for easy operation access · All-in-one control panel: hydraulic actuation, pressure setting, timing, electric info display, temperature setting · Enclosure design, shielding splash and dirt and wheels, for easy transportation

hydraulic 200mm butt fusion machine
planning tool for butt fusion machine

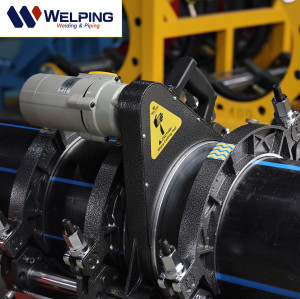

Planning tool
· Double chains transmission system with self-centering and self-tightening function,ensures no loosing and stucking in operation · Reinforced trimming plate, anti-crack
· Powerful copper-wiring motor · Durable, double edges HSS blade · Minimum 1000mm pipe trimming available
Heating Plate
· Cast aluminum body with Anti-stick PEFT coating from Daikin · Qualified built-in heating elements, swift and steady temperature rising · Standard equipped with aviation plug and heavy duty cable, ensures operation safety
heating plate of butt fusion machine
DOWNLOAD
Welping E-Catalog of Butt Fusion Machine
Breakdown Part List of Hydraulic Butt Fusion Machine
Operational Manual of Hydraulic Butt Fusion Machine
Warranty Certificate of Butt Fusion Machine
WHAT WE CAN DO FOR YOU?
Welping Factory for Butt Fusion Machine
OUR SERVICES
WELPING develops, manufactures, and sells devices and systems for welding thermoplastics and, in this area, focuses consciously on pipeline systems as the main field of application. And We have been in this field for more than 17 years since 2005.

We aim to bring industrial level design, performance and quality together, to provide professional solutions for a variety of mining & industrial, marine, municipal, irrigation, energy and landfill to help you build reputation.

WELPING is committed to becoming a business for all thermoplastic pipe, which includes the fusion equipment and certified technical training to assist with the installation and fabrication of any plastic pipes related project. WELPING has continually broadened the scope of supply and usage for polyethylene pipe, valve, and fitting system design into new market segments. Also, We help our customers source pipe tools to support their projects. Our success is in the quality of our products and the knowledge and service of our people.
