Heavy-duty Roll Grooving Machine for Large-size pipes 8"-32" (RG-K32)
- Model
- RG-K32
Item specifics
- Grooving Capacity
- 8"-32"
- Max Wall Thickness
- 13mm
- Power Supply
- 2200W
- Output Speed
- 20RPM
Review
Description

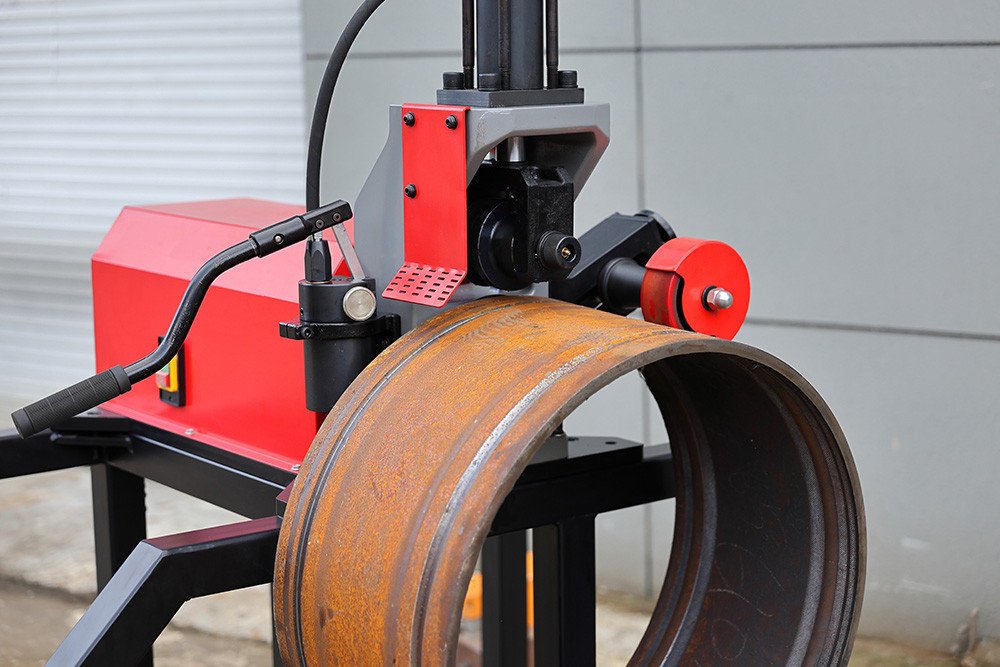

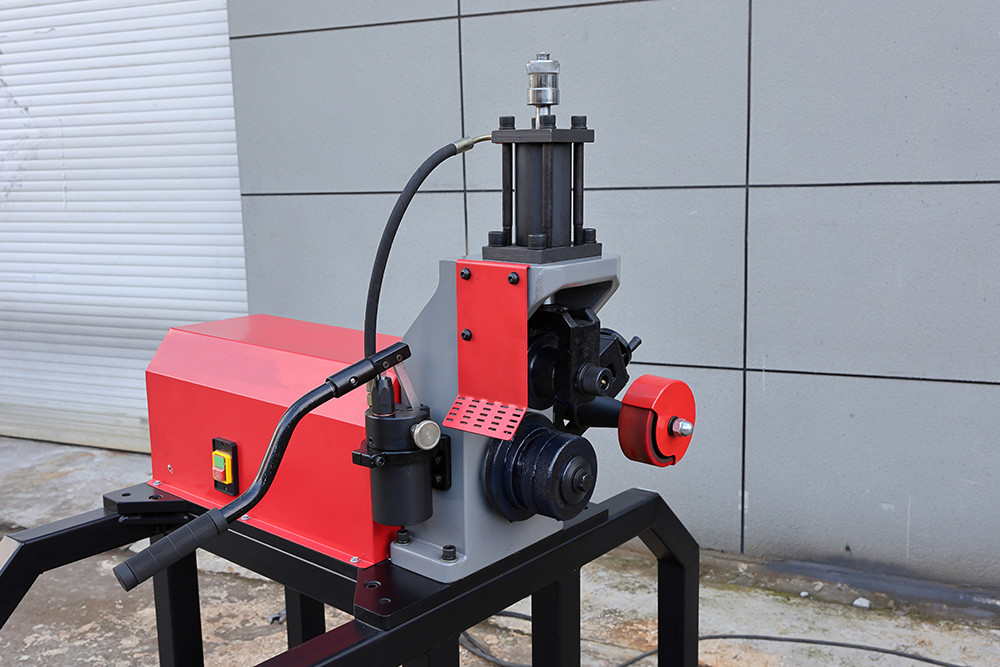

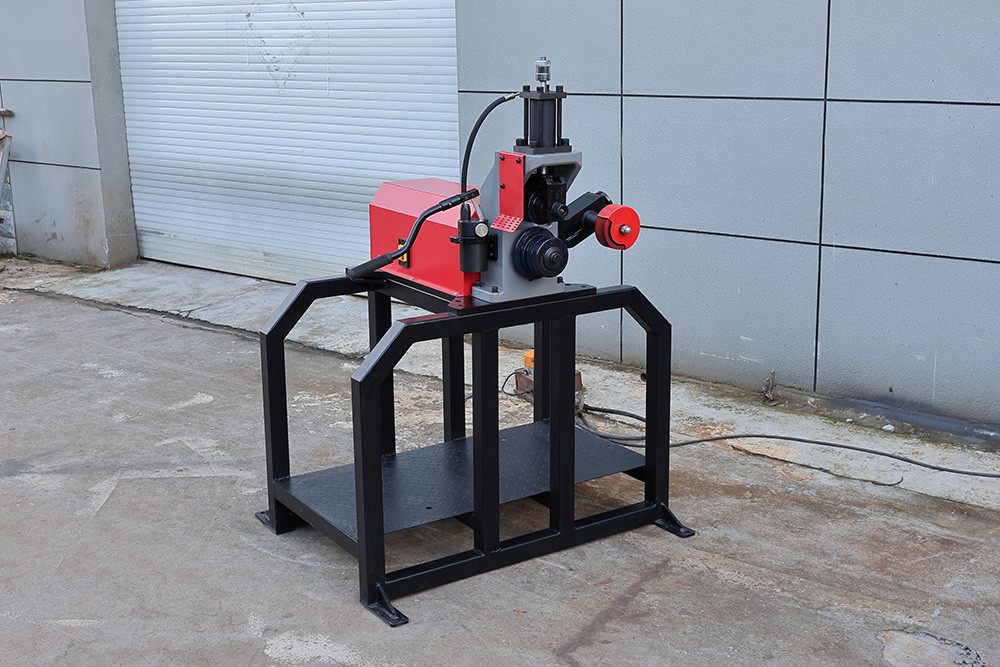

8"-32" heavy-duty hydraulic roll grooving machine
The RG-K32 heavy duty hydraulic grooving machine is suitable for rolling grooves on steel pipes and Stainless Steel.from 8"-32" (DN200~DN800) SCH10 to SCH40.
Ideal for use in both workshops and job sites for streamlined mass fabrication. Its exceptional strength and durability make it a reliable choice for heavy-duty applications.
Unique split-type hydraulic system features an independent pump and cylinder structure. The fully enclosed pump design eliminates the need for a breather hole, reducing hydraulic oil replacement frequency and extending pump lifespan.

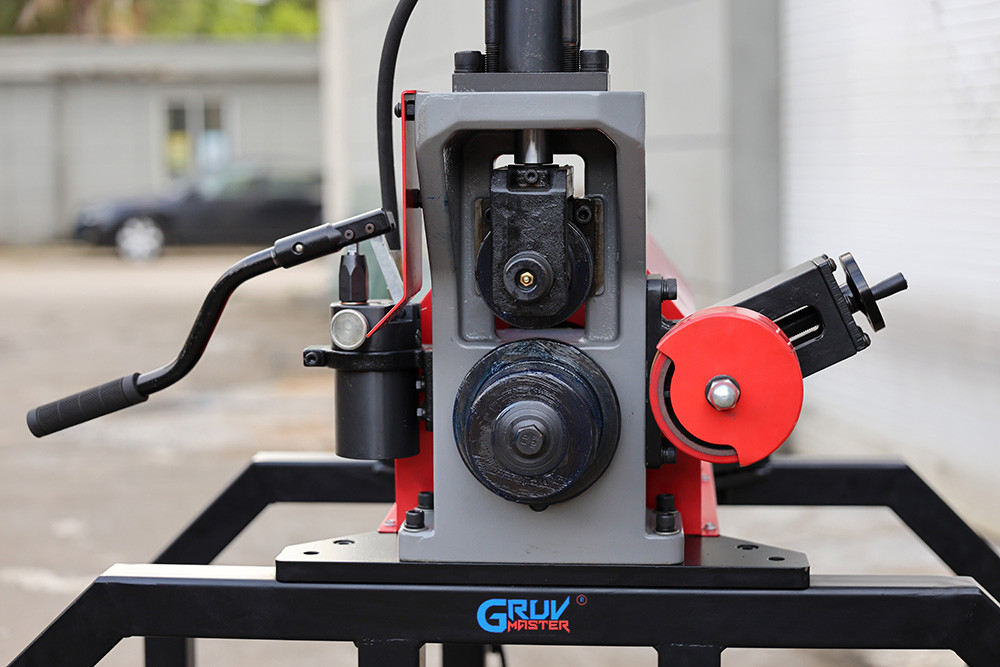

The interlocking structure of groove roller and drive roller ensures precise control of the pipe sealing surface length.
scope
|
model
|
RG-K32
|
|
Applicable materials
|
Carbon steel, stainless steel
|
capacity |
Suitable for 8"-16" steel pipe SCH10/SCH40 |
Suitable for 18"-32" steel pipe SCH10/SCH40 | |
|
power supply
|
380V/440V
|
frequency | 50Hz/60Hz |
Maximum wall thickness | 13mm |
Motor Power | 2200W |
Output speed | 20 rpm |
Packaging gross weight | 430kg |
Package Size | 125*115*165cm |
Ordering Information
|
catalog number
|
stage
|
strength
|
Voltage frequency
|
|
900032
|
3PH
|
2200W
|
380V, 50/60HZ
|
|
900033
|
3PH
|
2200W
|
440V, 50/60HZ
|
Standard Parts
|
Item Number
|
describe
|
net weight
|
|
|
911087
|
Drive roller 8"~12" (φ219~φ325)
|
3.5kg
|
|
|
911088
|
Drive roller 14"~16" (φ355~φ426)
|
3.5kg
|
|
911089 | Drive roller 18"~24" (φ457~φ630) | 3.5kg | |
911166 | Drive roller 26"~32" (φ660~φ810) | 3.5kg | |
912029 | Groove roller 8"~12" (φ219~φ325) | 2.0kg | |
912030 | Groove roller 14"~16" (φ355~φ426) | 2.0kg | |
912031 | Groove roller 18"~24" (φ457~φ630) | 2.0kg | |
912065 | Groove roller 26"~32" (φ660~φ810) | 2.0kg | |
998038 | Pipe rack for 8"~32" | 35kg | |
998193 | Pipe stabilize | 7kg | |
Product details picture

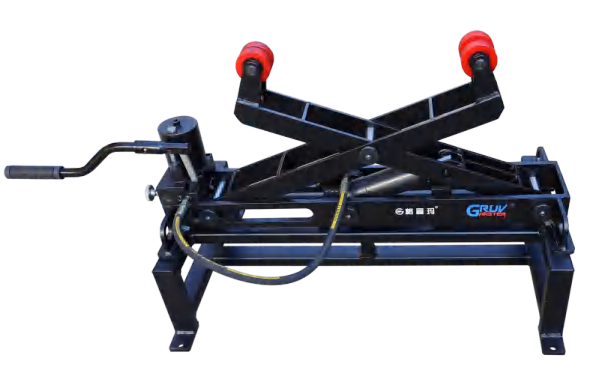

Pipe rack
Suitable for 2"-8" steel pipe

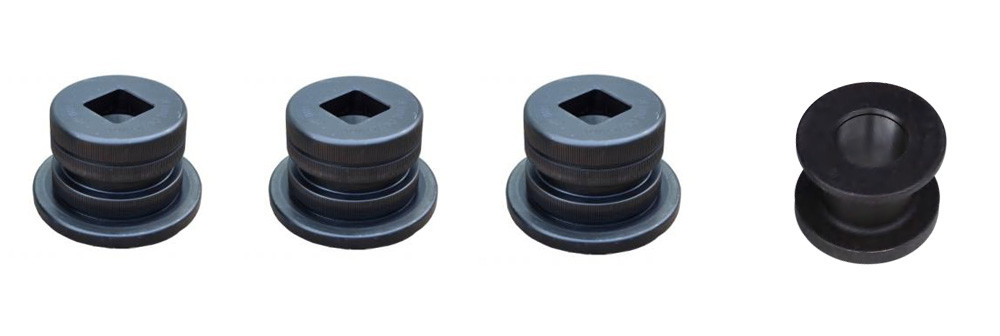

Drive roller
A set of 8"~12" (φ219~φ325) ;
Set of 14"~16" (φ355~φ426) ;
Set of 18"~24" (φ457~φ630) ;
Set of 26"~32" (φ660~φ810 );

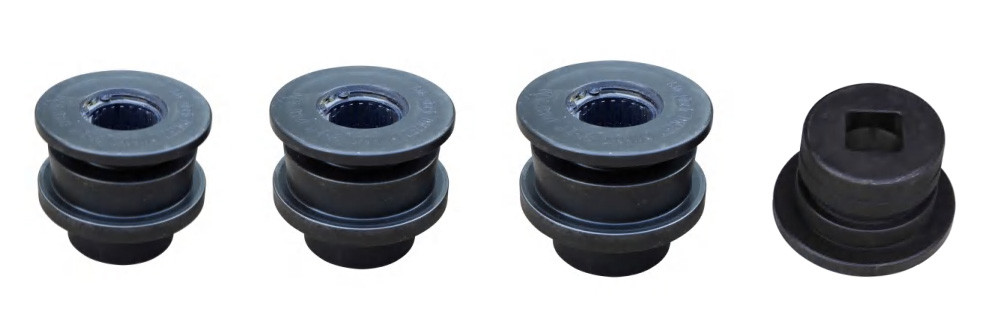

Groove roller
A set of 8"~12" (φ219~φ325) ;
Set of 14"~16" (φ355~φ426) ;
Set of 18"~24" (φ457~φ630) ;
Set of 26"~32" (φ660~φ810 );

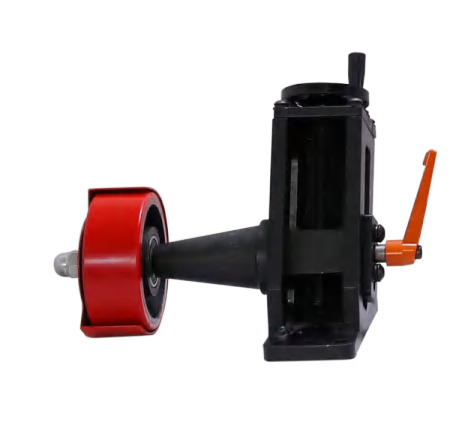

Pipe stabilize
