Hydraulic Roll Grooving Machine 1"–12" with TitanSeal™ Hydraulic System | Gruvmaster RG-8X
- Model
- RG-8X
Item specifics
- Fabrication Capacity
- 1"-12"(DN25-DN300) SCH10/40 Steel Pipe
- Max Wall Thickness
- 10mm
- Output Speed
- 32RPM
- Power Supply
- 1500W
- Gross Weight
- 142KG
- Voltage
- 110V/220V
Review
Description

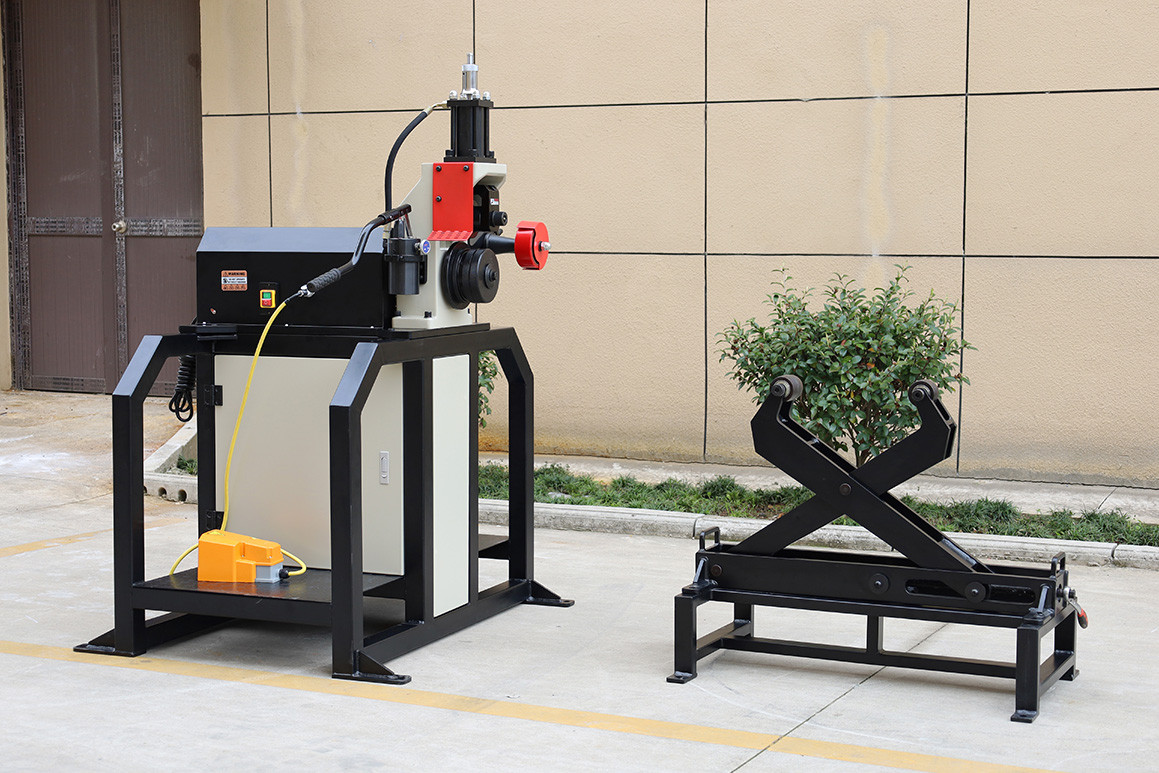

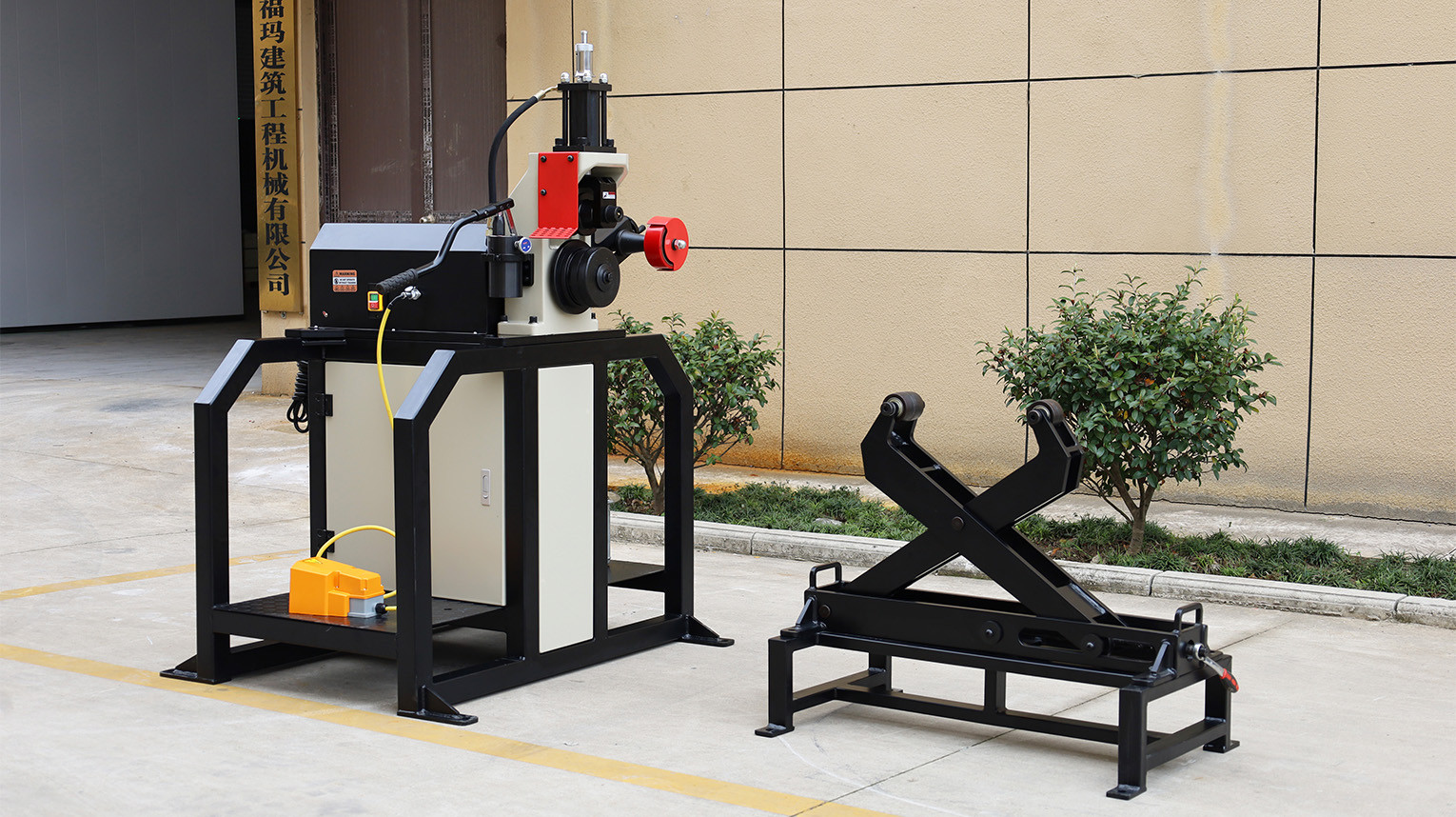

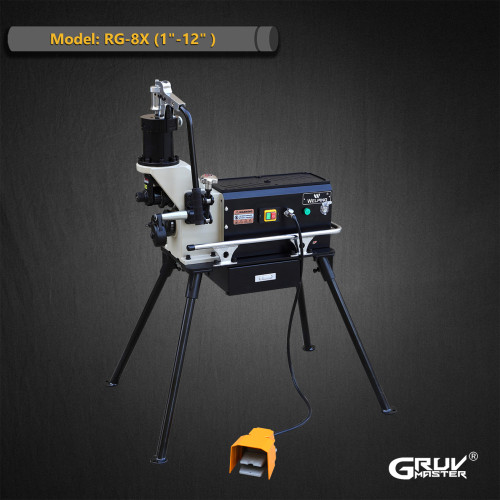

RG-8X Hydraulic Roll Grooving Machine
For 1–12″ Steel Pipes, Expandable to 14–16″
RG-8X Design Features
● Built for heavy-duty grooving jobs, model RG-8X is ideal for high-volume grooving of various size steel pipes in workshop and construction sites.
● Equipped with a high-power motor and high-strength gearbox, the machine is built for long-term, continuous operation.
● One-Push™ groove roller system: instant pipe engagement with a single press, quick and effortless operation.
● Heavy-duty groove rollersand drive rollers (standard 1"-12", can choose 14" for option)with interlocking structure ensures precise control of the pipe sealing surface length.
● Titanseal™ fully enclosed hydraulic pump with innovations: ultra-fast feed, dual oil-reservoir structure, and multi-seal protection — doubling efficiency and ensuring ultra-long service life without oil changes.
● Working speed up to 32 RPM, boosting efficiency by 39%.
Pipe Roll Grooving Machine Parameter
Model： |
|
Suitable materials： |
Carbon Steel,SS Pipe |
Fabrication Capacity： | 1"-12" Pipe SCH10/SCH40 |
Power supply： |
220V/110V |
Frequency： | 50/60HZ |
Max wall thickness： | 13mm |
Motor power： | 1500W |
Output speed： | 32RPM |
Packing gross weight： | 142KG |
Standard Parts of RG-8X Roll Groover
Item Number |
Description |
Net Weight |
|
911283 |
Drive Roller 1"–1½" (Φ33–Φ48) |
1.13 KG |
|
911284 |
Drive Roller 2"–3" (Φ60–Φ89) |
1.30 KG |
|
911285 | Drive Roller 3½"–6" (Φ101–Φ168) | 1.30 KG | |
911286 | Drive Roller 8"–12" (Φ219–Φ325) | 1.40 KG | |
912133 | Groove Roller 1"–1½" (Φ33–Φ48) | 0.45 KG | |
912134 | Groove Roller 2"–3" (Φ60–Φ89) | 0.45 KG | |
912135 | Groove Roller 3½"–6" (Φ101–Φ168) | 0.45 KG | |
912136 | Groove Roller 8"–12" (Φ219–Φ325) | 0.45 KG | |
Optional Parts of RG-8X Roll Groover
Item Number |
Description |
Net Weight |
|
912137 |
Groove Roller 14"–16" |
0.45 KG |
|
911287 |
Groove roller for SCH10 Anti-flare(14"~16") |
0.45 KG |
|
Roll Grooving Machine Configuration

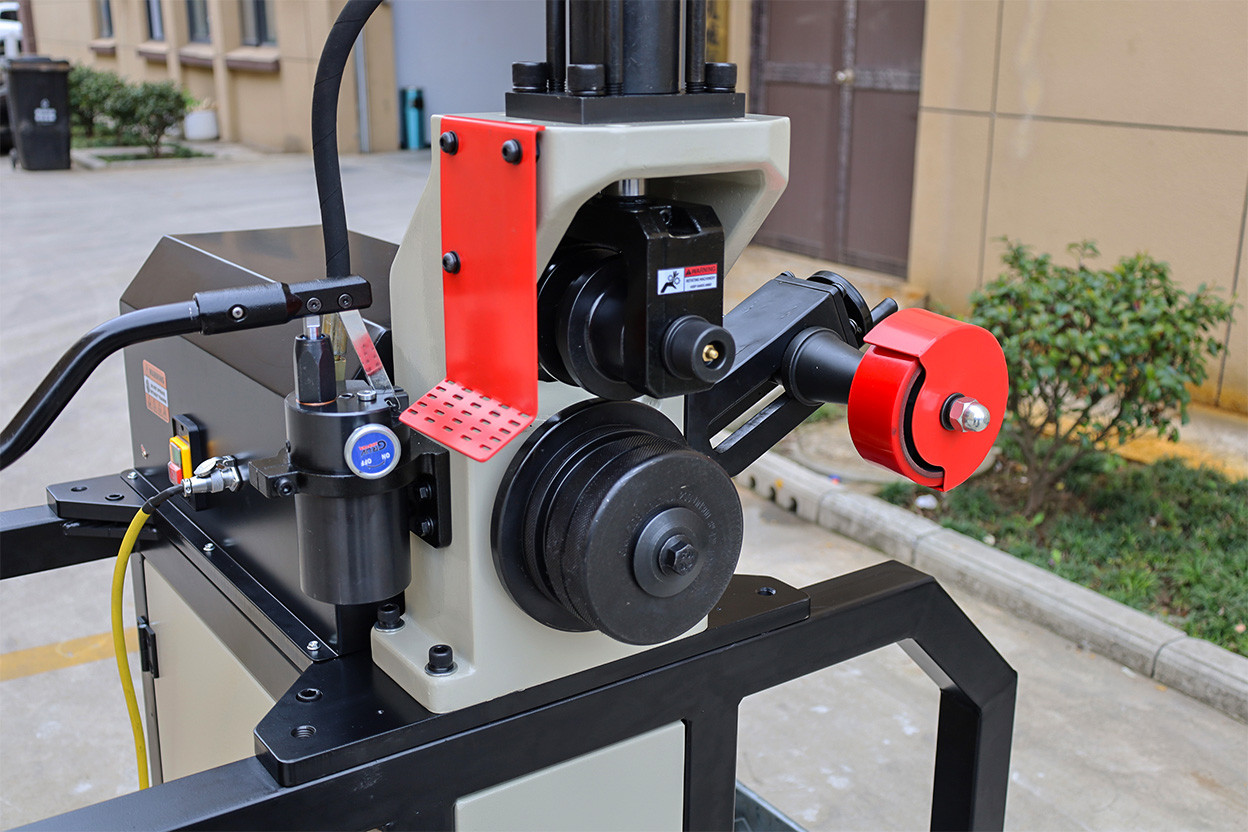

Hydraulic Feeding System
· Smooth and controlled hydraulic feeding
· Stable pressure for consistent groove forming
· Heavy-duty design for large pipe grooving

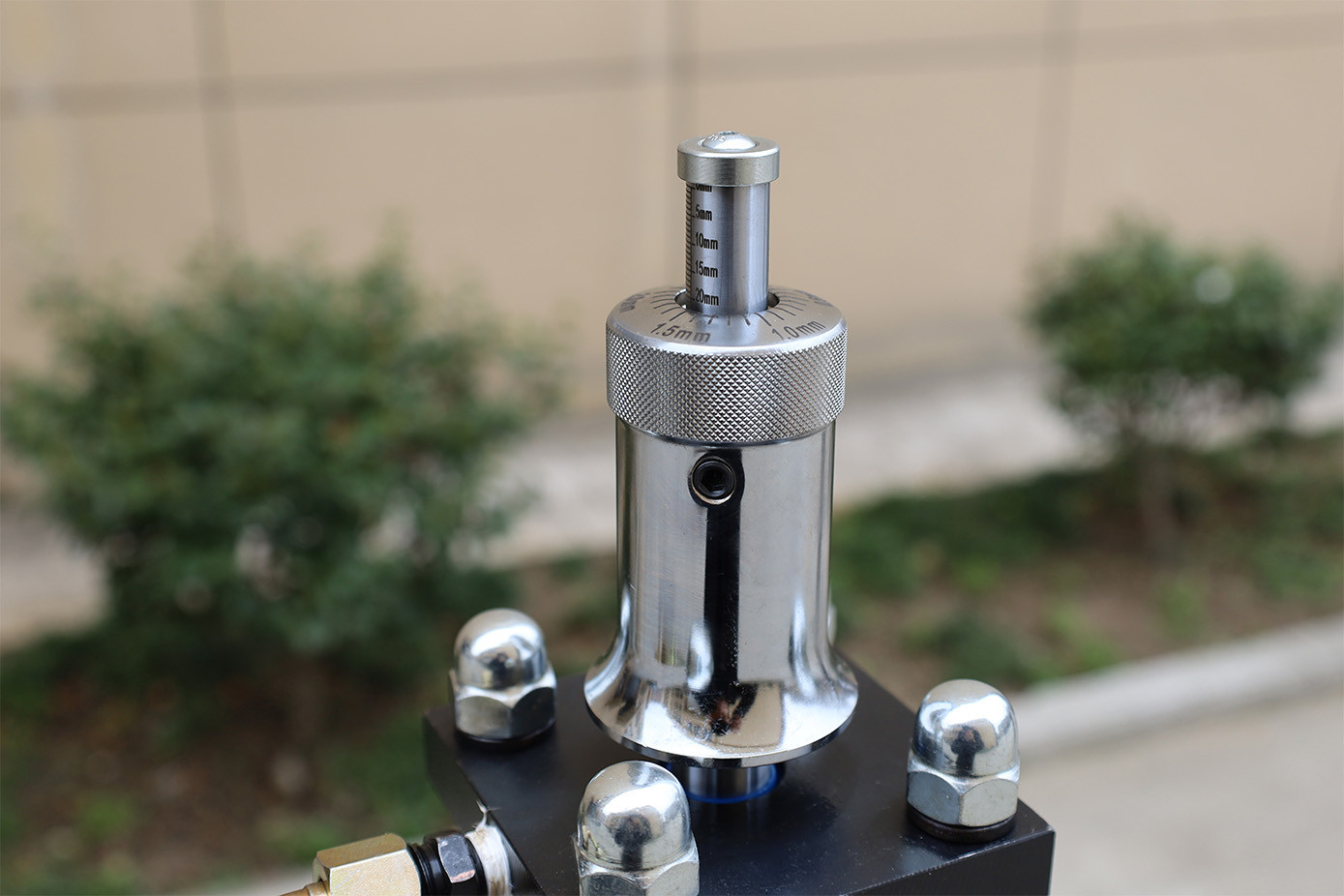

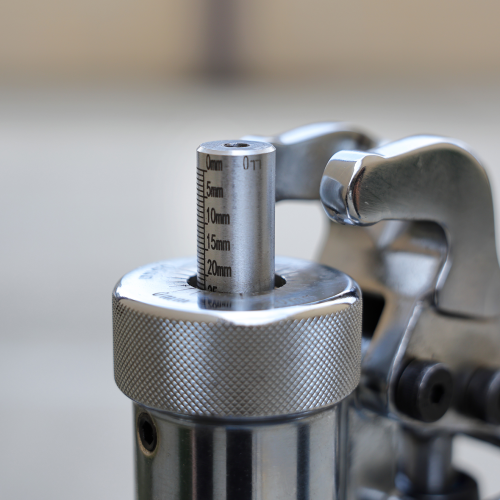

Groove Depth Adjustment
· Easy groove depth setting for different pipe sizes
· Clear scale for quick adjustment
· Helps maintain consistent groove dimensions

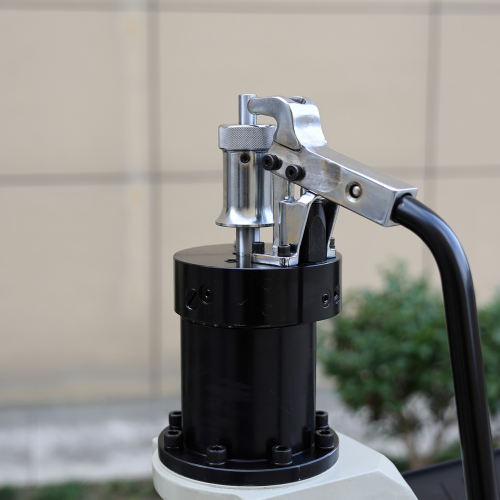

Fully Enclosed Split Hydraulic System
· Fully enclosed design without a breather vent
· Helps reduce oil contamination and replacement frequency
· Extends pump life and reduces maintenance

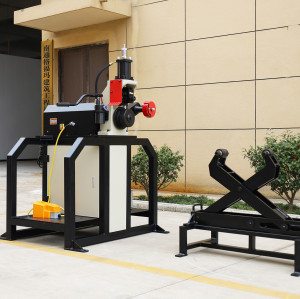

Heavy-Duty Machine Structure
· Reinforced frame for large-diameter pipe grooving
· Stable support during heavy-duty operation
· Designed for workshop and fabrication use

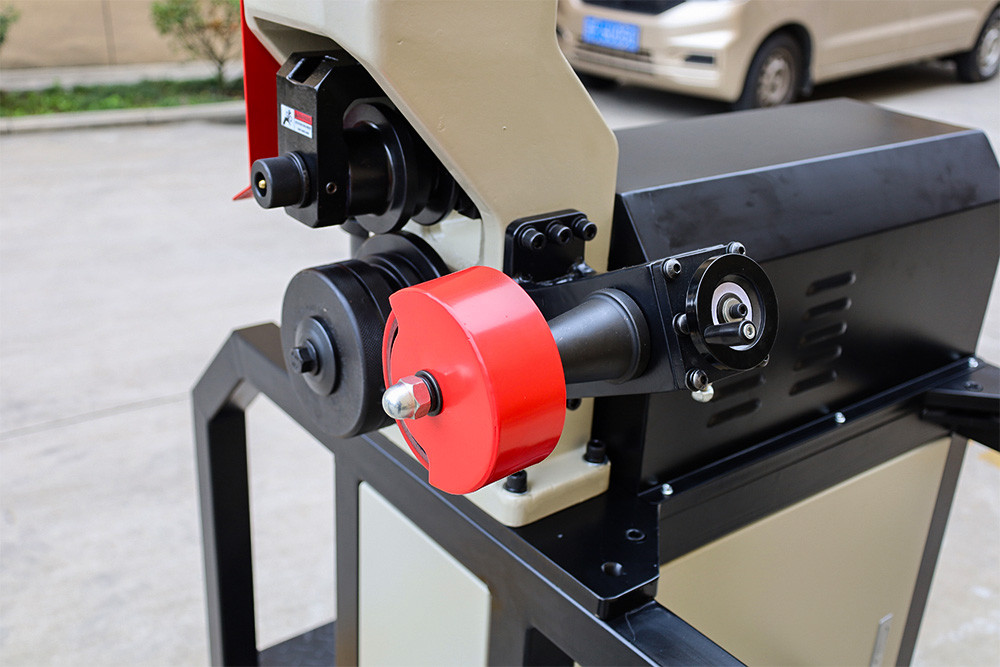

Pipe Stablizer
· Helps keep large pipes stable during grooving
· Reduces pipe movement and improves groove consistency
· Adjustable for different pipe diameters

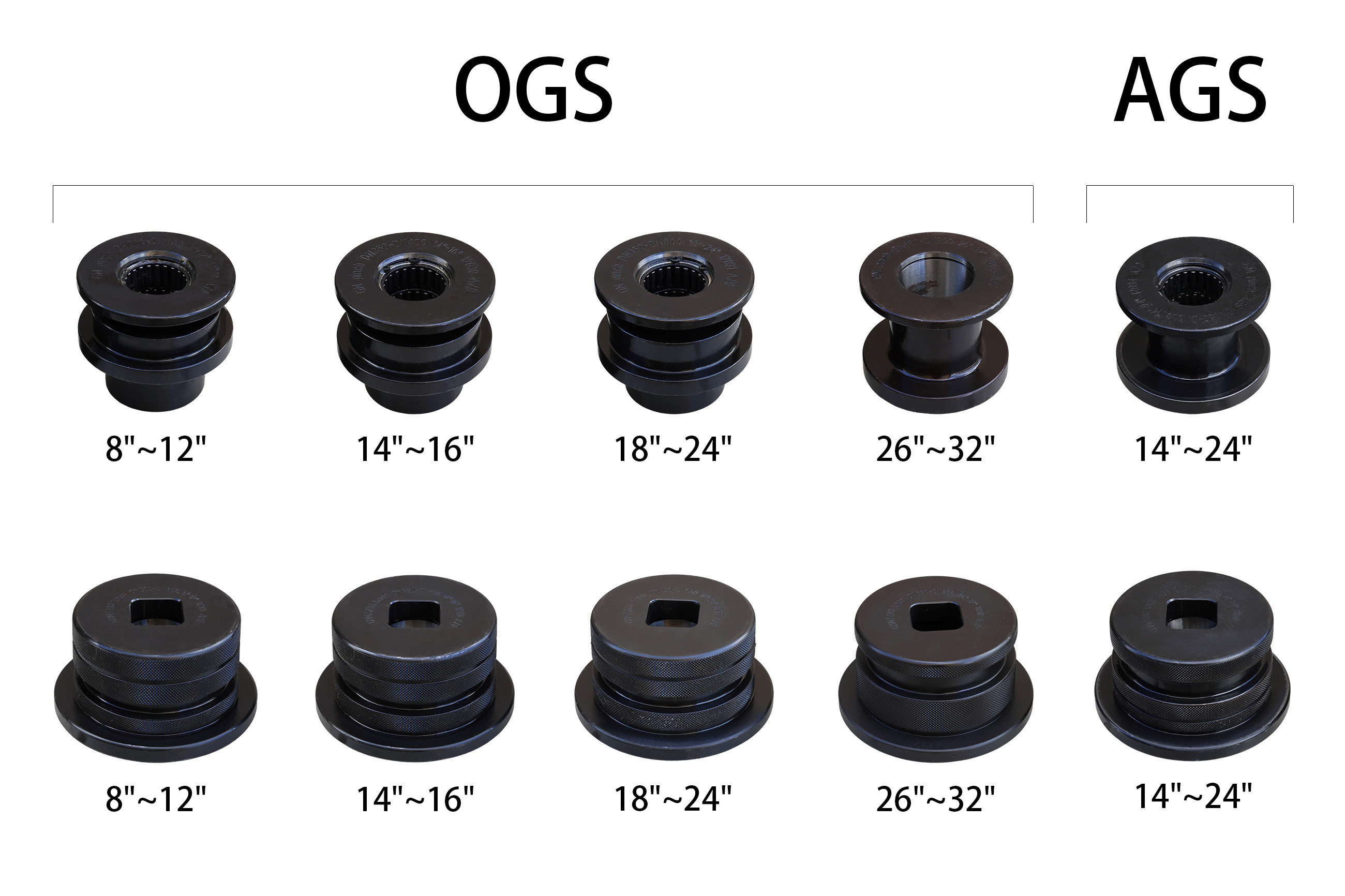

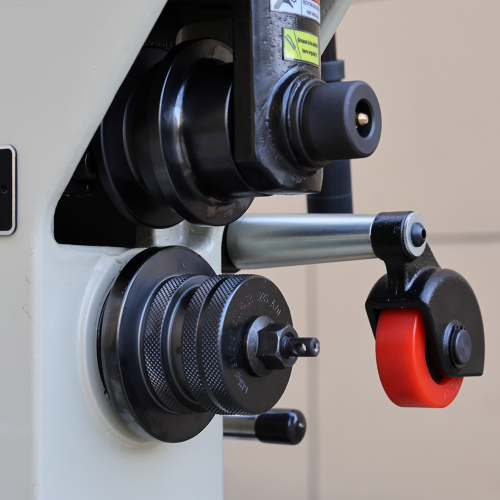

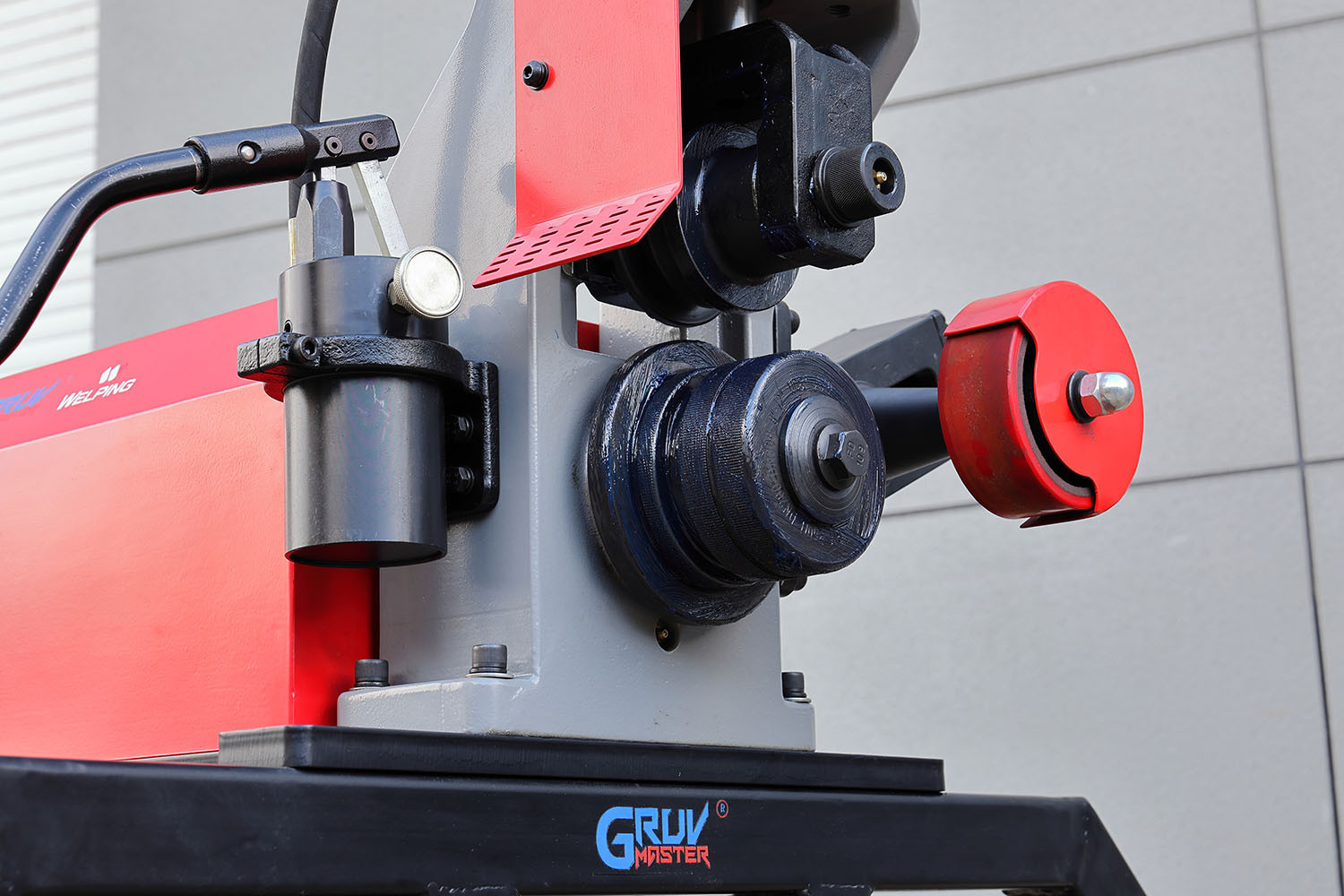

Roll Sets
· Available in OGS and AGS configurations
· Covers pipe sizes from 8" to 32"
· High-strength hardened steel for long service life

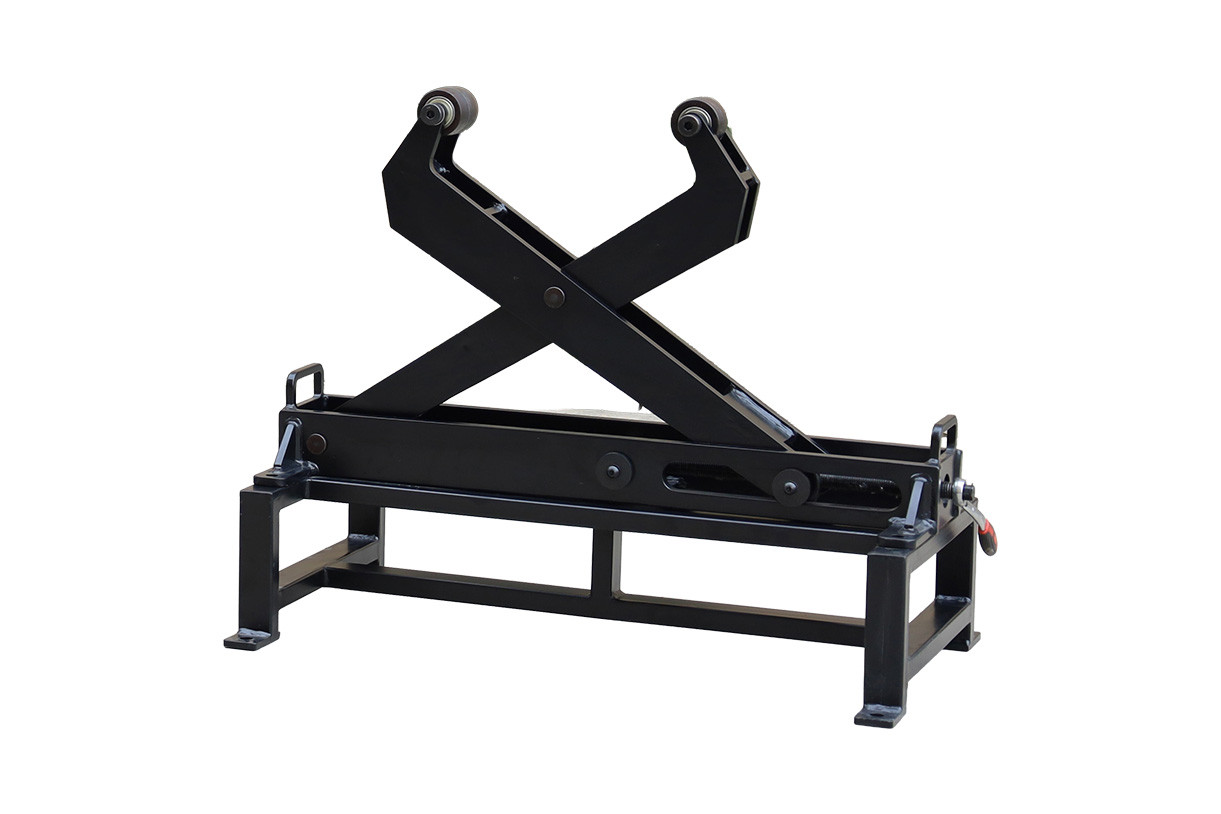

Adjustable Pipe Stand
· Provides stable support for large and heavy pipes
· Height adjustable for proper pipe alignment
· Makes large-pipe grooving easier and more stable

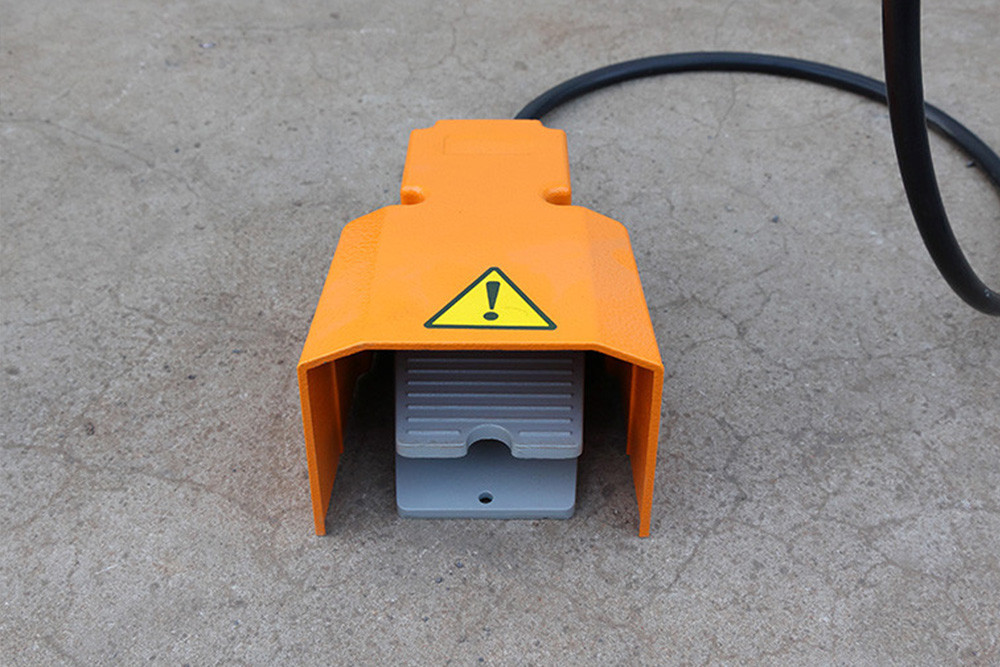

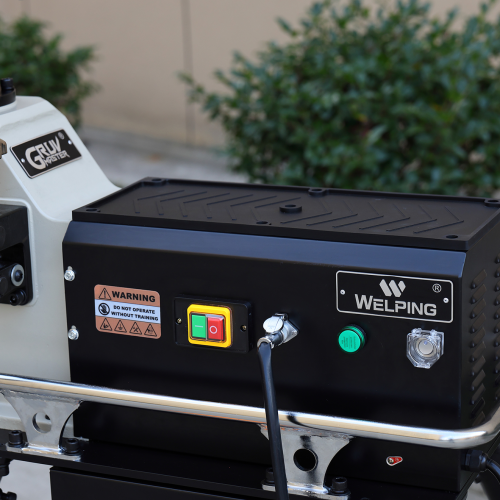

Foot Switch Control
· Hands-free machine operation
· Easy start and stop during the grooving process
· Allows the operator to focus on pipe positioning
