Hydraulic Inward and Outward Roll Grooving Machine for Steel Pipe SCH10/SCH40 3/4"-8"(RG-2T)
Hydraulic Inward and Outward Roll Grooving Machine for Steel Pipe SCH10/SCH40 3/4"-8"(RG-2T)
Hydraulic Inward and Outward Roll Grooving Machine for Steel Pipe SCH10/SCH40 3/4"-8"(RG-2T)
Hydraulic Inward and Outward Roll Grooving Machine for Steel Pipe SCH10/SCH40 3/4"-8"(RG-2T)
Hydraulic Inward and Outward Roll Grooving Machine for Steel Pipe SCH10/SCH40 3/4"-8"(RG-2T)
Hydraulic Inward and Outward Roll Grooving Machine for Steel Pipe SCH10/SCH40 3/4"-8"(RG-2T)
Model
RG-2T

Item specifics

Grooving Capacity
3/4"-8"
Max Wall Thickness
4mm
Power Supply
700W
Power
220V/380V

Review

Description

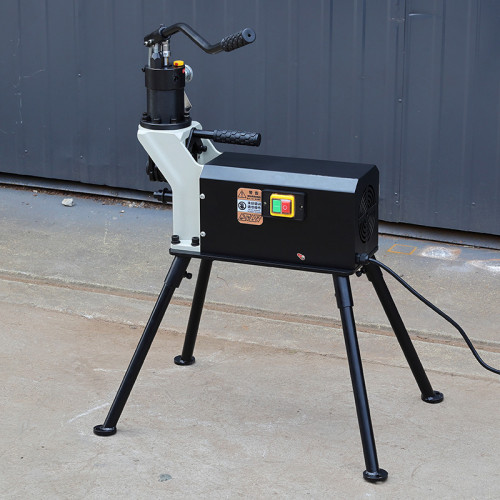

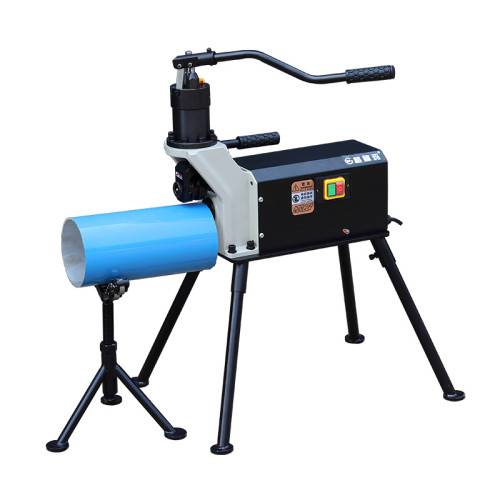

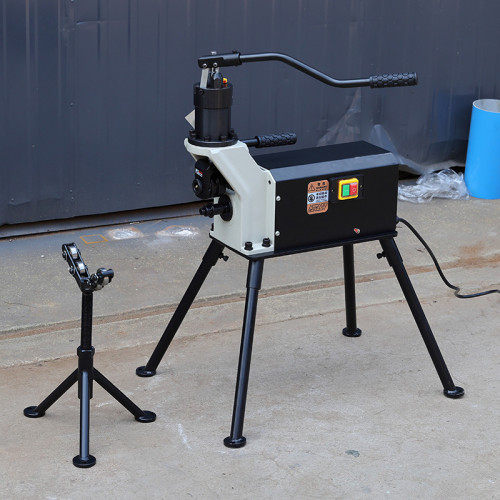

RG-2T Pipe Beading & Grooving Machine
3/4″–8″ Beading with Grooving Capability
The RG-2T forms outward beads and inward grooves on aluminum and stainless steel pipes using interchangeable roller sets. Its compact design combines an electric drive with manual hydraulic feed, an adjustable depth stop, and detachable carrying handles for consistent forming and convenient transport.
RG-2T Technical Specifications
24" Roll Grooving Machine
Model:
RG-2T
Suitable Materials:
 Aluminum and Stainless Steel
Fabrication Capacity:
DN20~DN200 (Outward groove)
DN50~DN150 (Inward groove)
Max Wall Thickness:
Aluminum pipe (4mm)Stainless steel pipe (3mm)
Power Supply:
220 V, Single-phase / 380 V, Three-phase
Frequency:
50/60 Hz
Motor Power:
700 W
Output Speed:
23 RPM
Packing Gross Weight:
49 kgs
Packing size:
56*26*65 cm
Resources
Catalog of Steel Pipe Tools
Key Features
Beading & Grooving
Forms outward beads or inward grooves on aluminum and stainless steel pipes by changing the roller sets.
Integrated Hydraulic Feed
The integrated hand-operated hydraulic pump allows gradual adjustment of the forming depth.

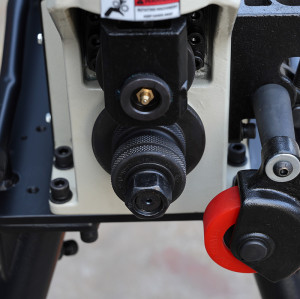

Adjustable Depth Stop
An adjustment screw and lock nut help maintain consistent forming dimensions across pipes of the same size.
Detachable Carrying Handles
Detachable carrying handles simplify transport and reduce storage space.
Pipe Roll Grooving Machine Parameter
Convex Groove Size :
DN20: C=23mm
DN40~DN200: C=29mm
DN50~DN200: C=35mm

*“C” is the dimension from the center of the groove to the end of the pipe. It can be customized according to requirements
