Heavy duty Electric Hydraulic Roll Groover for SS Pipe SCH10/SCH40 1"-12"(RG-2S)
- Model
- RG-2S
Item specifics
- Grooving Capacity
- 1"-12"
- Max Wall Thickness
- 10mm
- Power Supply
- 1100W
- Output Speed
- 23RPM
Review
Description

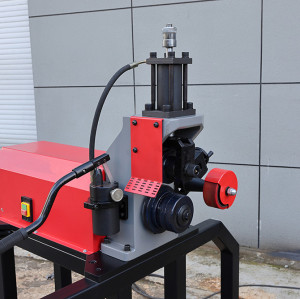

1"-12" Heavy Duty Electric Hydraulic Roll Groover Machine
RG-2S electric hydraulic groove rolling machine is used to roll grooves on steel pipes and stainless steel. From 2"-12" (DN50~DN300) SCH10 to SCH40.
This rolling groover is ideal for use in the workshop and on the job site. It comes with a powerful motor, hydraulic feed pump, convenient foot switch, and sturdy tube holder, making it a comprehensive multi-purpose tool for large-scale manufacturing.
Our innovative split hydraulic system is designed to prevent tank leaks and extend the overall life of the machine. Additionally, our groove depth locking knobs ensure the highest quality grooves and maximum efficiency.
scope
|
model
|
RG-2S
|
|
Applicable materials
|
Carbon steel, stainless steel
|
capacity |
Suitable for 1"-12" steel pipe SCH10/SCH40 |
|
power supply
|
220V/110V
|
frequency | 50Hz/60Hz |
Maximum wall thickness | 10mm |
Motor Power | 1100W |
Output speed | 23 rpm |
Packaging gross weight | 130kg |
Package Size | 82*47*88cm |
Ordering Information
|
catalog number
|
stage
|
strength
|
Voltage frequency
|
|
900020
|
single
|
1100W
|
220V, 50/60HZ
|
|
900021
|
single
|
1100W
|
110V, 50/60HZ
|
Standard Parts
Product details picture
|
Item Number
|
description
|
net weight
|
|
911172 | Driving roller 1"-1 1/2"(φ33~φ48) | 1.13kg | |
|
911022
|
Driving roller 2"-3"(φ60~φ89)
|
1.30kg
|
|
|
911021
|
Drive roller 3 ½"~6" (φ101~φ168)
|
1.30kg
|
|
911020 | Driving roller 8"-12" (φ219~φ325) | 1.40 kg | |
912066 | Groove roller 2"- 3" (φ60~φ89) | 0.45kg | |
912010 | Groove roller 1"-1 1/2"(φ33~φ48) | 0.45kg | |
912009 | Groove roller 3 ½"~6" (φ101~φ168) | 0.45kg | |
912008 | Groove roller 8"-12" (φ219~φ325) | 0.45kg | |
998078 | 1"-12" pipe rack | 6.90kg | |
998026 | Foot switch | 1.50kg | |
Pipe rack
Suitable for 1"-12" steel pipe
drive roller
A set of1"-1 1/2"(φ33~φ48)
A set of 2"-3"(φ60~φ89)
A set of 3 ½"-6" (φ101~φ168)
A set of 8"-12" (φ219~φ325)
Troughed roller
A set of1"-1 1/2"(φ33~φ48)
A set of 2"-3"(φ60~φ89)
A set of 3 ½"-6" (φ101~φ168)
A set of 8"-12" (φ219~φ325)
Foot switch
