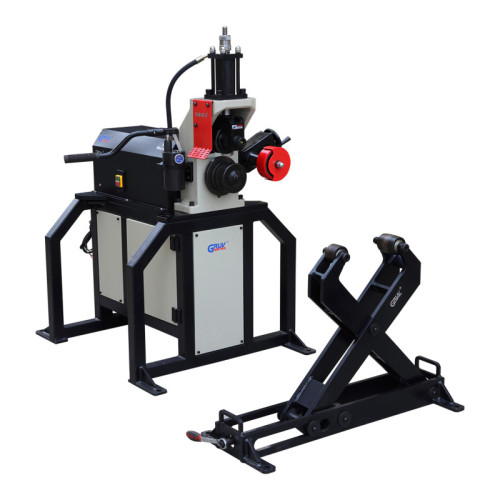

Hydraulic Roll Grooving Machine for 8 Inch to 24 Inch Steel Pipes (RG-4X Pro)
- Model
- RG-4X Pro
Item specifics
- Grooving Capacity
- 8"-24"
- Max Wall Thickness
- 13mm
- Power
- 2200V/3PH
- Output Speed
- 20RPM
- Packing size
- 110*75*99cm
- Gross Weight
- 230kg
Review
Description

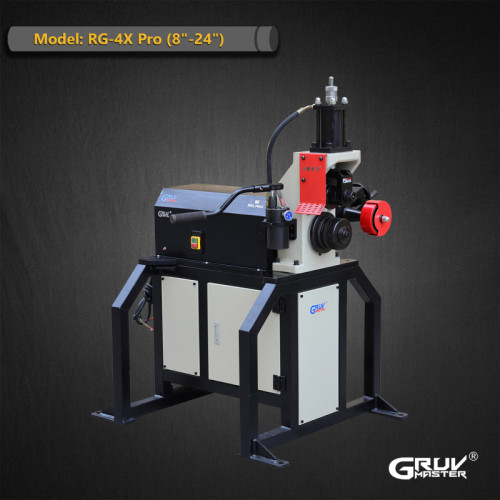

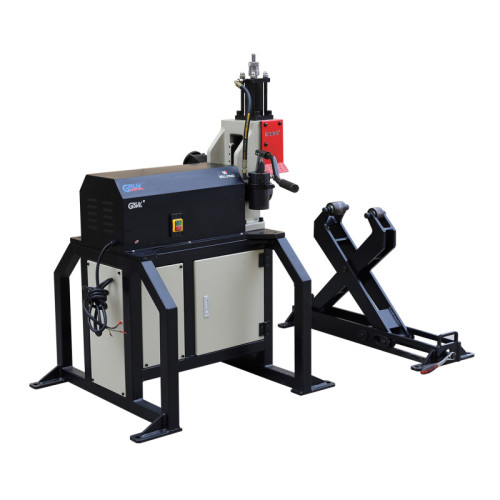

RG-4X PRO Roll Grooving Machine
Heavy-Duty Grooving for Steel Pipe Processing
Steel Pipe Roll Grooving Machine
FEATURES OF ELECTRO-HYDRAULIC ROLLING GROOVER
· The RG-4X electric hydraulic roll grooving machine is designed for steel and stainless steel pipes from 8" to 24" (DN200–DN600), SCH10/SCH40.
· Suitable for daily fire-fighting pipe applications, this roll groover integrates a motor, hydraulic feeding pump, foot switch, and pipe stand.
· The motor's built-in high-performance gear reduction system enables a compact design and reduced noise levels.
· The unique combination of the hydraulic feeding pump and the groove depth lock knob guarantees premium grooves and optimal efficiency.
Steel Pipe Roll Grooving Machine Parameters
|
Model:
|
RG-4X Pro
|
|
Suitable materials:
|
Carbon steel; Stainess steel
|
Capacity: | 8"-24" steel pipe |
|
Power supply:
|
220V/110V
|
frequency | 50Hz/60Hz |
Motor power: | 2200W |
Max wall thickness: | 13mm |
Output speed | 20 rpm |
Packaging gross weight | 230kg |
Package Size | 110*75*99cm |
Standard Parts
|
Item Number
|
Description
|
Net Weight
|
|
|
911087
|
Drive roller 8"~12" (Φ219~Φ325）
|
3.50 KG
|
|
|
911088
|
Drive roller 14"~16" （Φ355~Φ426）
|
3.50 KG
|
|
|
911089
|
Groove roller 18"~24" （Φ457~Φ630）
|
3.50 KG
|
|
911295 | Groove roller 8"-12" （Φ219~Φ325） | 2.00 KG | |
911296 | Groove roller 14"-16" （Φ355~Φ426） | 2.00 KG | |
911297 | Groove roller 18"-24" （Φ457~Φ630） | 2.00 KG | |
998229 | Pipe stand for 8"~24" （Φ219~Φ630） | 25.0 KG | |
998026 | Foot switch | 1.50 KG | |
Optional parts
|
Item Number
|
Description
|
Net Weight
|
|
|
911099
|
AGS Groove roller 14"~24" (Φ355~Φ630)
|
3.50 KG
|
|
|
912034
|
AGS Drive roller 14"~24" (Φ355~Φ630)
|
2.00 KG
|
|
Steel Pipe Roll Grooving Machine Configuration
Hydraulic system
· High-quality seal parts ensure long-term field usage without leaking
· Proper-hardened piston rod of long life

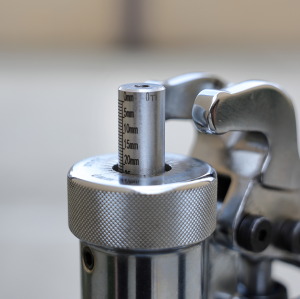

· Built-in groove depth adjusting rod

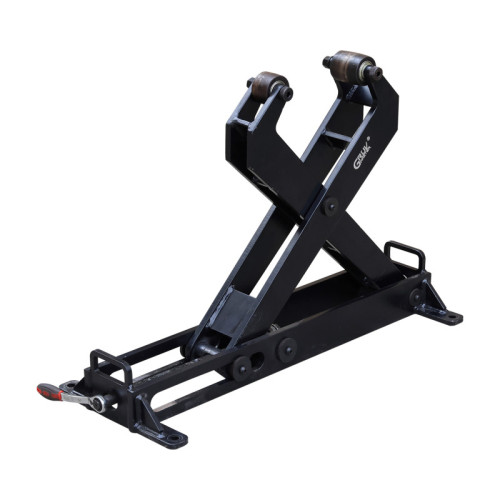

Pipe Stand
· Reinforced and thickened structure for higher load capacity
· Stable support for large-diameter steel pipes
· Designed for continuous, heavy-duty use
Casting Structure
· Reinforced cast components for key load-bearing parts
· Strong resistance to deformation under high forming force
· Balanced structure for stable operation
Guide Rollers
· Reinforced guide rollers for accurate pipe positioning
· Prevents pipe walking during grooving
· Improves groove consistency and safety

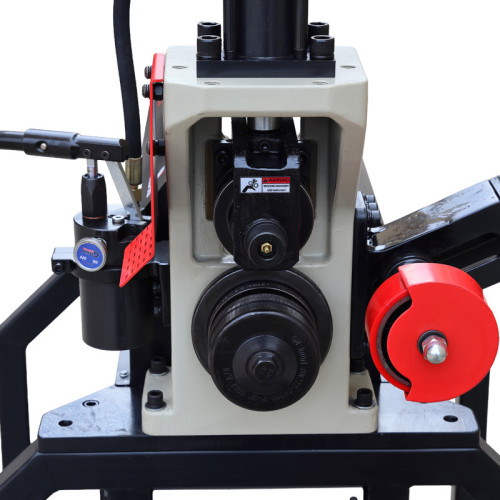

Roll Sets
· Available in size: 8"-16" (DN200~DN400,Φ219~Φ426); SCH10/40 Steel Pipe
· For steel Pipe: 18"-24" (DN450~DN600,Φ457~Φ630); SCH10/20 Steel Pipe
Scenes To Be Used
